Dimmer switch - Matt Black 1-4 Gang
Dimmer switch - Matt Black 1-4 Gang
Description
A solid steel dimmer switch designed for smooth lighting control in kitchens, bedrooms and living spaces.
Features:
• Solid steel faceplate with V0-rated fire-resistant base
• Smooth, silent dimming
• Compatible with dimmable LED bulbs
• No neutral wire required
Design Details:
Finished in matt black with a precision-knurled dimmer knob, offering a refined tactile feel and a clean architectural appearance.
This product is only suitable for countries where the mains supply is between 220 and 240 volts.
Specifications
Specifications
What’s in the Box
- Solid steel Faceplate
- Knurled Control Knob
- Mounting Bracket
- Dimmer Module
- Installation Screws
- Electric parameter
- User Installation Guide
Download Manual
Download Manual
Frequently Bought Together

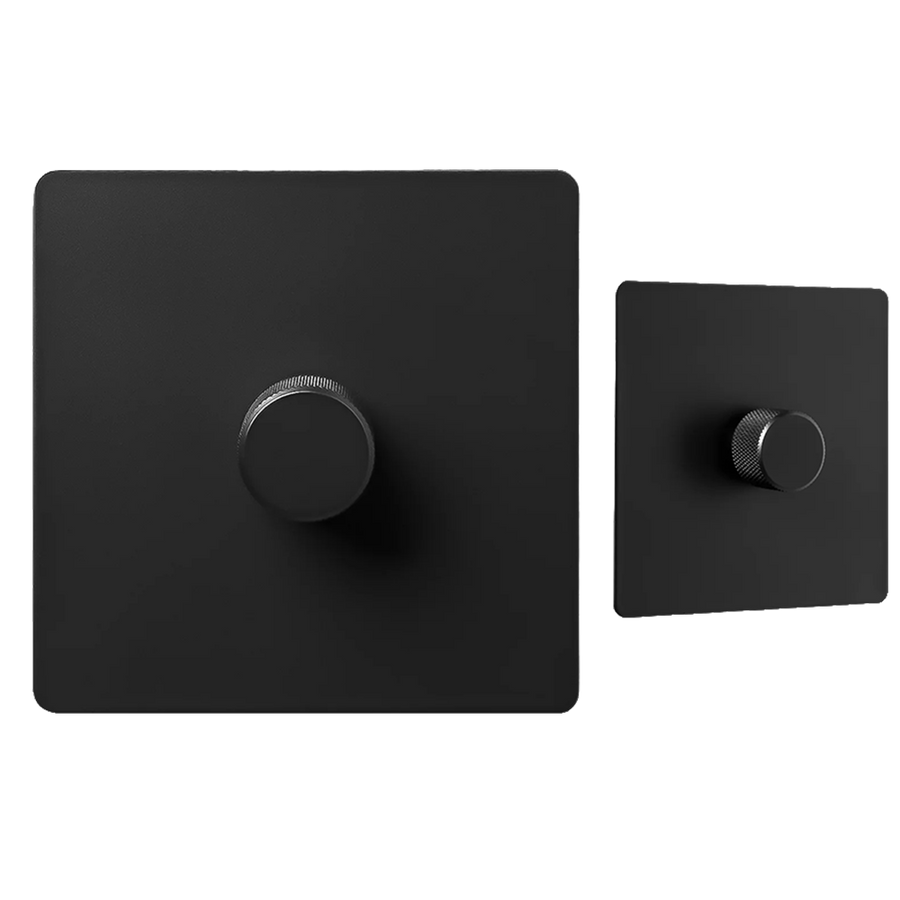

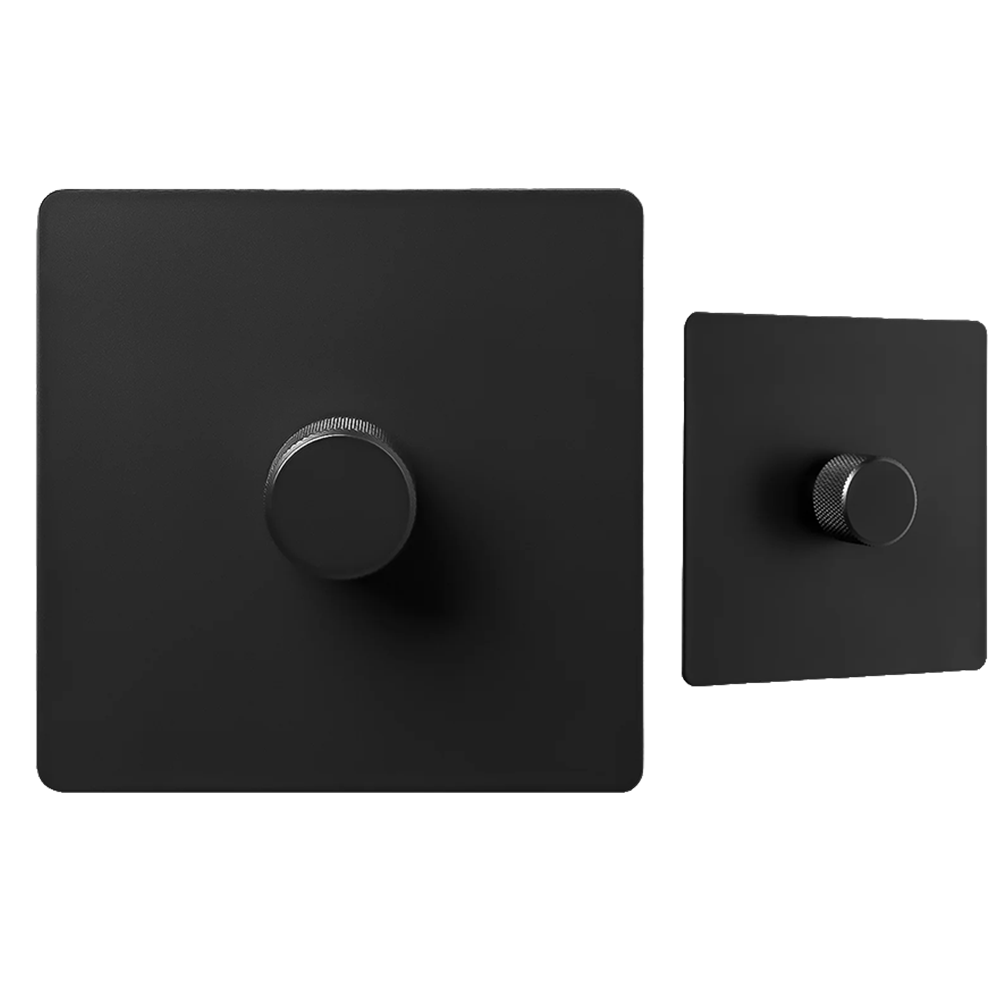

Solid Stainless Steel Finish
Crafted from solid stainless steel with a matte black finish, this dimmer switch features a classic design that blends seamlessly into both traditional and modern interiors.
Knurled Rotary Knobs
Heavy-duty, genuine steel knurled knobs. The familiar feel of a rotary knob, powered by intelligent control — for effortlessly smooth, fluid dimming.
Engineered for Smooth, Silent Dimming
Powered by a high-speed dimming chipset and precision-tuned MOSFETs, it delivers smooth, silent and flicker-free dimming from 0–100%.

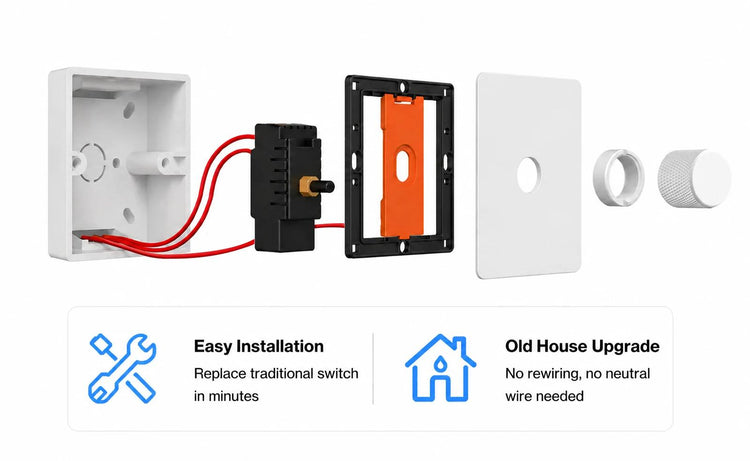

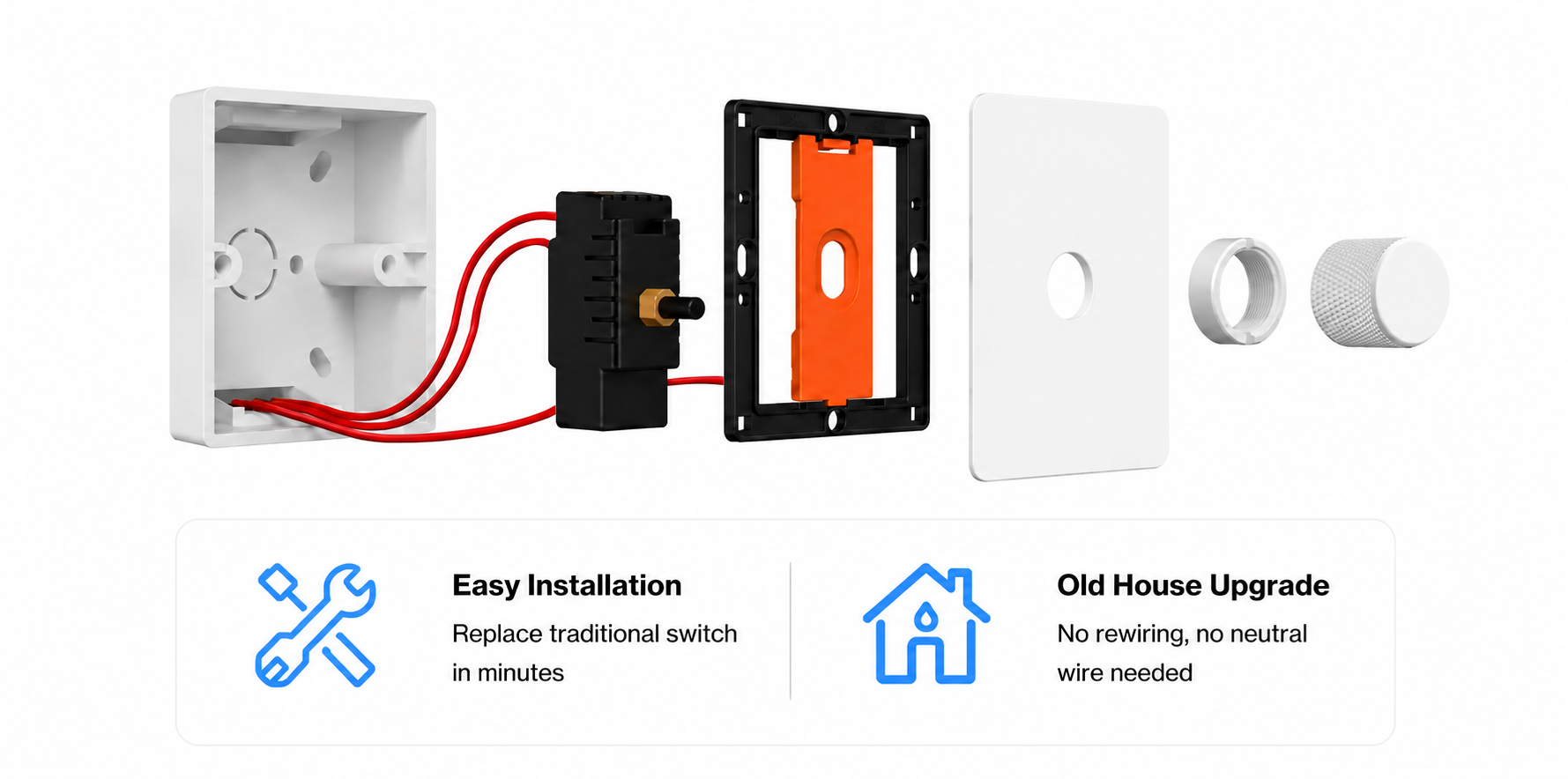

Designed for UK Homes
No neutral wire required. No rewiring needed — simply replace your existing switch. Compatible with standard 25mm UK back boxes.
Considered Lighting Control
Brightness memory:
Automatically restores your last used brightness level.
Soft start
Gently start your lights to prevent them from being impacted.
Min. brightness
Programmable minimum brightness to prevent flickering.
Max. brightness
Automatic maximum brightness adjustment to prevent flickering.
Boost mode
Boost the lights that don't illuminate when turned on at a lower level.
Frequently Asked Questions
Yes – both options are supported. Trailing edge (default) is recommended for most LEDs, while leading edge may be better for some halogens or older LED bulbs.
Yes – you can set custom minimum and maximum brightness levels to avoid flicker and tailor dimming to your bulbs.
The dimmers are designed for high-quality dimmable LED bulbs or halogen lamps. Minimum load is 5W per lamp, with a total minimum of 5W per circuit.
No – Repenic are designed for UK homes and work without a neutral wire. This means they can be installed as a direct replacement for your existing wall switch in older properties as well as modern homes.
It should be at least 25mm.
In one circuit, there can only be one smart dimmer, and it can not be wired to a 2-way switch or intermediate switches. If you want to control it with a 2-way or 3-way method, please use our multi-way dimmers.
No need. Our plates have a protective coating on the surface that effectively prevents oxidation and fading, so almost no special daily care is required.
There is no limit on the number of lights controlled by the dimmer. As long as the total wattage of all lights controlled by this dimmer adds up to less than 250W. Due to certain errors in the nominal wattage of lights, we recommend that the total wattage of the lights be preferably below 230W.
Yes, but only if it meets the required safety standards and is placed in the right zone.
See It in Action
