Choosing the Right Dimmer Switch

The correct dimmer depends on the lighting load, lamp type and number of control positions required. Repenic rotary dimmers combine tactile control with solid metal finishes and options for conventional, multi-point, 0–10V and Zigbee lighting systems.

Before ordering, confirm whether the connected lamps are dimmable, whether the installation requires control from more than one position and whether the lighting uses standard mains dimming or a separate 0–10V driver.

Universal 2-Way Dimmer Switches

A universal rotary dimmer is suitable for compatible mains-dimmable LED, halogen and incandescent lamps. Selectable leading- and trailing-edge modes help the dimmer work with a wider range of compatible lighting loads.

• Rotary dimming provides direct adjustment from the wall, while pressing the control switches the connected lighting on or off.
• Leading- and trailing-edge modes allow the operating mode to be matched more closely to the connected dimmable lamps.
• 2-way switching allows the same lighting circuit to be switched from a second position using a compatible conventional switch.
• No neutral required makes the dimmer suitable for many existing UK two-wire lighting installations.

Multi-Point Dimming

Standard 2-way dimmers normally provide rotary dimming at one position and on/off switching at the second. Where brightness must be adjusted from three or more wall positions, choose a compatible multi-point dimmer system instead.

• Synchronised control allows the connected lighting to be switched and dimmed from every compatible control position.
• Multiple locations make multi-point dimmers suitable for larger rooms, hallways, staircases and spaces with several entrances.
• No conventional intermediate switch required when the complete compatible multi-point arrangement is used.

Explore the Repenic multi-point dimmer range for installations that require dimming from several locations.

0–10V Rotary Dimmers

A 0–10V dimmer is intended for lighting systems that use a compatible 0–10V driver or controller. It is not a direct replacement for a standard mains dimmer and requires dedicated D+ and D− control connections.

• 0–10V control output adjusts compatible drivers, controllers and other equipment designed to accept a 0–10V control signal.
• Switched-live control provides on/off control alongside the separate 0–10V signal.
• 2-way on/off control can be provided from a second position using a compatible conventional switch.
• Extended applications can include compatible motor, pump and fan controllers, provided the connected equipment is designed for 0–10V control and remains within the specified ratings.

Zigbee Smart Dimmers

Where app control, voice control, schedules, automations or energy monitoring are required, choose a compatible Zigbee smart dimmer. Physical rotary control remains available at the wall, so everyday operation does not depend on an app.

• Zigbee 3.0 connectivity provides smart control through a compatible Zigbee platform.
• App and voice control are available when supported by the connected platform and its Alexa or Google Assistant integration.
• Schedules and automations can control switching and brightness through the connected Zigbee platform.
• Energy monitoring allows compatible platforms to display the power consumption of the connected lighting circuit.

View the Repenic Zigbee smart dimmer range for connected lighting control.

Solid Metal Finishes

Repenic dimmers are available in coordinated metal finishes designed to match switches, sockets and other interior hardware.

• Brushed brass provides a warm metallic finish for traditional and contemporary interiors.
• Brushed stainless steel offers a clean, understated finish suited to modern interiors.
• Matt black creates a stronger architectural contrast against lighter walls.
• Matt white provides a quieter appearance that coordinates with pale walls and minimalist interiors.

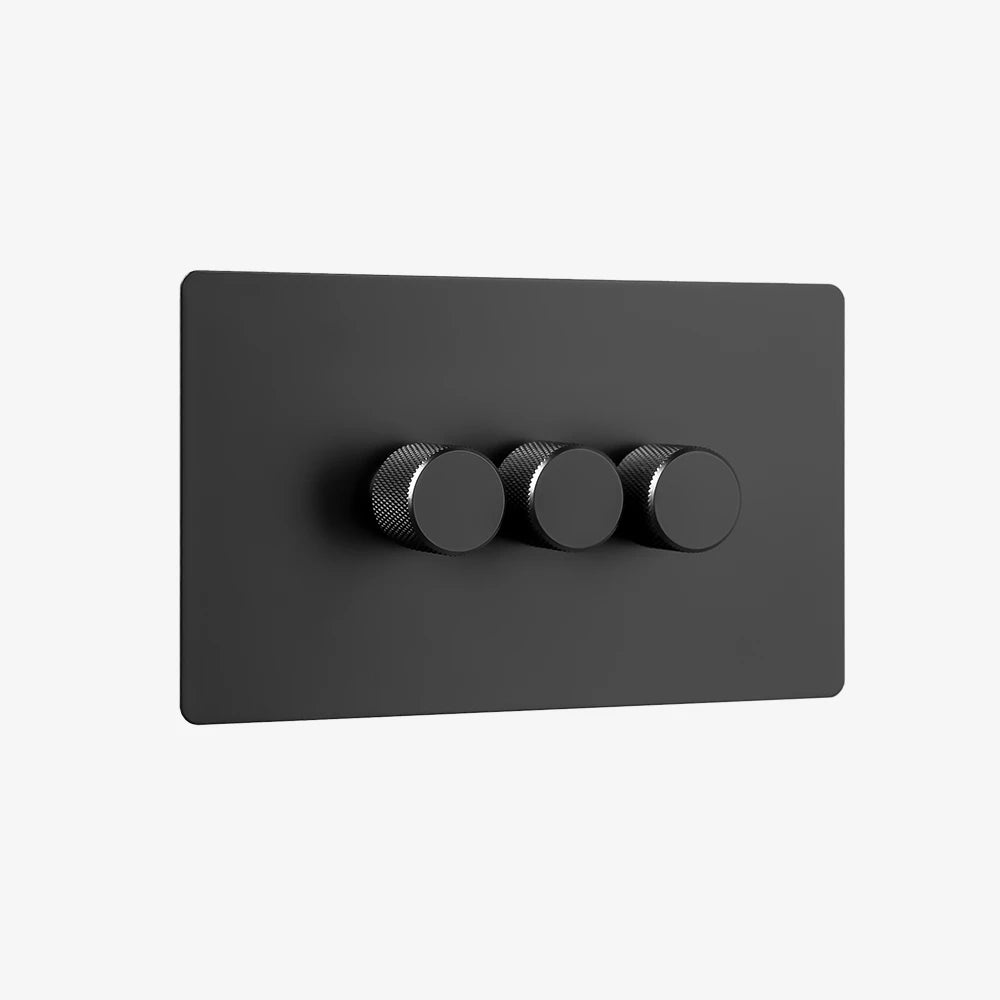

• 1–4 gang options allow several separate lighting circuits to be controlled from one coordinated faceplate.

Checking Lamp and Installation Compatibility

Always confirm that the connected lamps are dimmable and that their combined load falls within the selected dimmer’s stated minimum and maximum ratings. Compatibility can vary between lamp manufacturers, drivers and dimming methods.

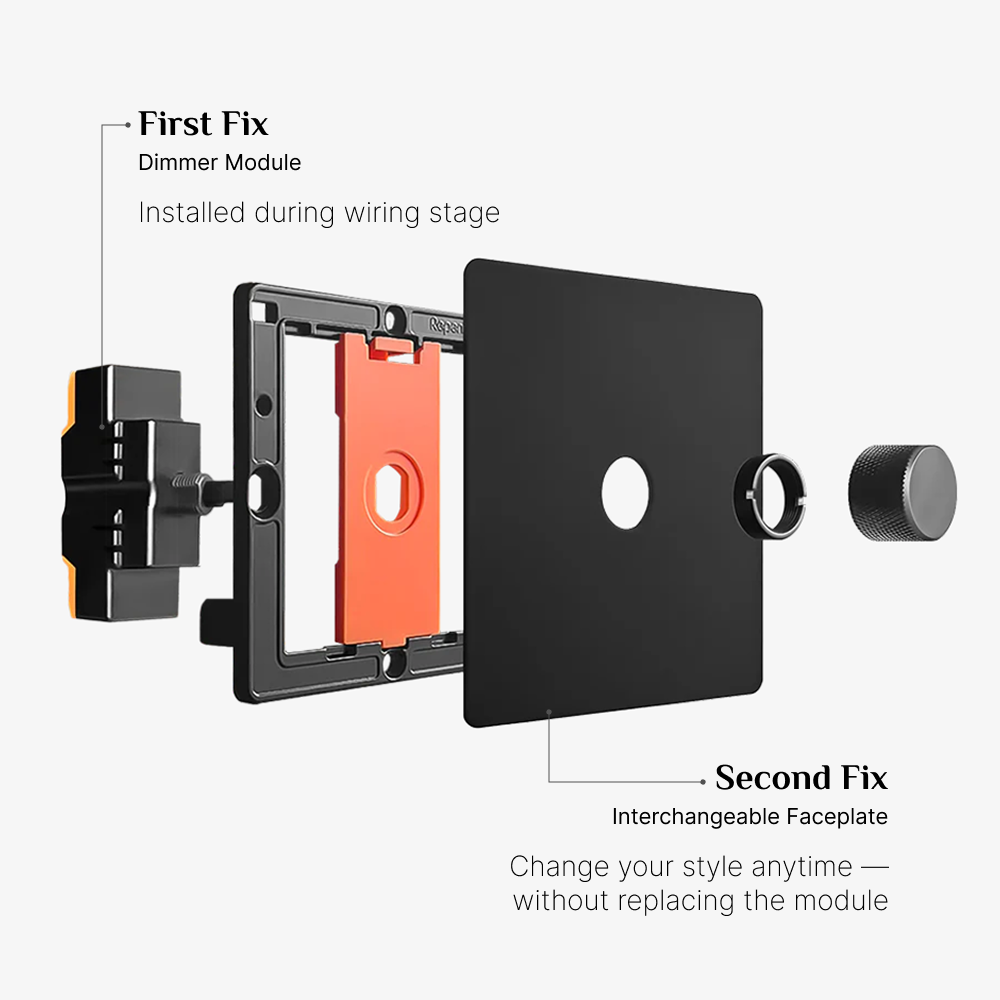

Repenic wall dimmers are designed for a standard UK 25mm back box, but available wiring space should still be checked before installation. The correct product must also be selected for standard 2-way, multi-point, 0–10V or Zigbee control.

Installation note: Fixed-wiring products should be installed in accordance with the supplied instructions and relevant UK wiring requirements. Before ordering, confirm the lamp type, connected load, back-box depth and required switching arrangement.
