What Is an Intermediate Switch and How Does It Work?

What Is an Intermediate Switch and How Does It Work?

An intermediate switch lets you control the same light or group of lights from three or more locations, together with two two-way switches.

For example, a staircase may need a switch downstairs, another on the landing and a third upstairs. An intermediate switch provides that extra control point, so you can turn the lights on or off wherever you enter or leave the space.

Table of Contents

How Does an Intermediate Switch Work?

In a conventional multi-way lighting circuit, two two-way switches sit at the ends, with one or more intermediate switches connected between them.

The wires linking the switches, commonly called strappers in the UK, provide two alternative electrical paths. Each end switch selects a path, while the intermediate switch changes how those paths connect.

It has four switching terminals and two connection states:

  • Straight-through: the two paths continue through without swapping.

  • Crossed: the two paths swap over.

Operating any switch in the circuit changes whether there is a continuous electrical path to the light. If the light was on, it turns off; if it was off, it turns on.

To add further control points, additional intermediate switches are connected in sequence along the two strapper paths between the end switches, with each providing one extra control location.

What Is the Difference Between a Two-Way and an Intermediate Switch?

Both help control lighting from multiple locations, but they perform different jobs within the circuit.

Feature Two-Way Switch Intermediate Switch
Main role Provides control at either end of a multi-way circuit Adds a third or further control point
Switching terminals Three, usually labelled COM, L1 and L2 Four; markings vary by product
Switching action Selects one of two paths Connects the paths straight through or crossed
Position in the circuit At the two ends Between the two end switches
Number needed for three control locations Two One

These terminal counts refer to the switching connections; a separate earth terminal may also be present.

Where Are Intermediate Switches Useful?

Intermediate switches are useful when people approach the same lighting area from more than two places.

Typical examples include:

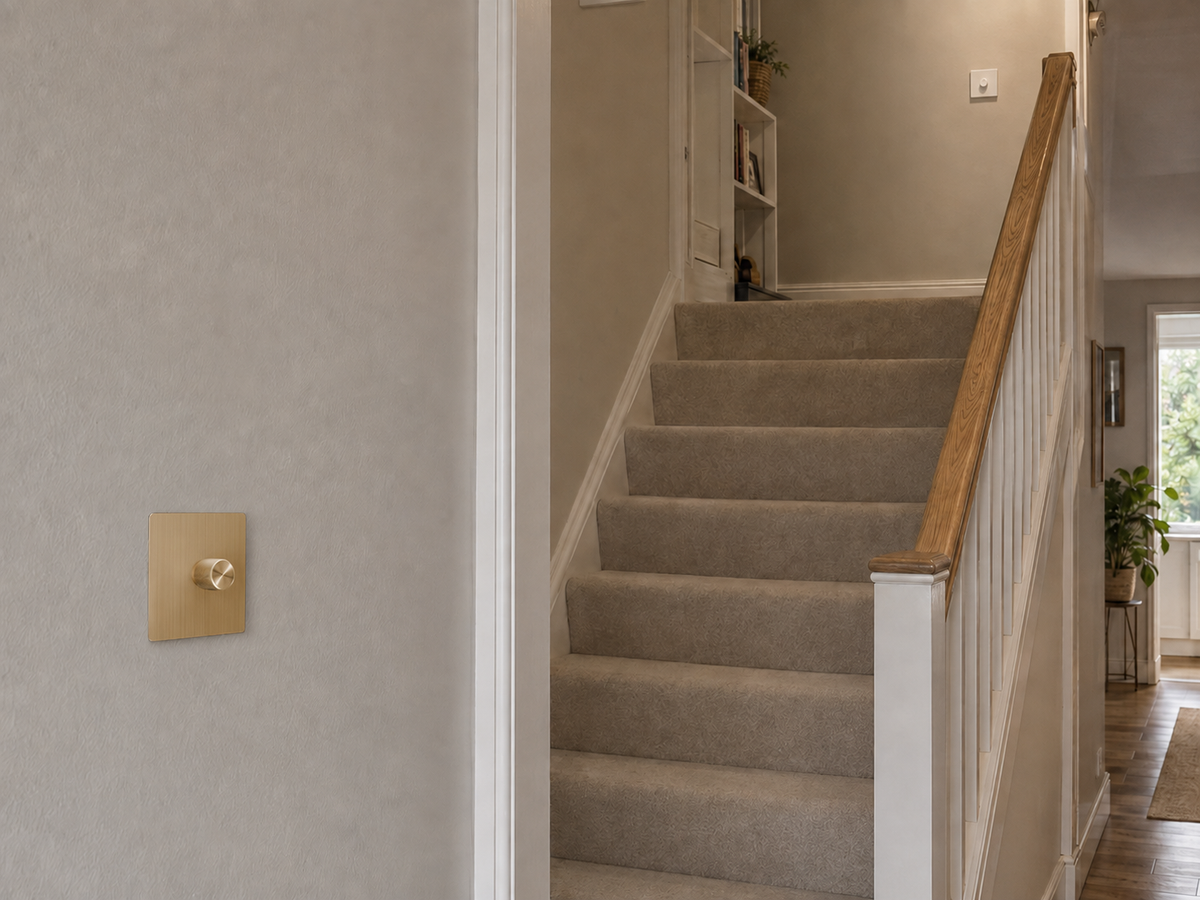

  • Staircases across several floors: switch the lights on downstairs and off from a landing or upper floor.
  • Long hallways: add a convenient control point near a side entrance.
  • Rooms with several doorways: place a switch beside each entrance.
  • Bedrooms: control the main light from the doorway and either side of the bed.

Plan switch positions around how you move through the room.

What Should You Check Before Installation?

Start with the existing circuit and the requirements of the specific switch. An intermediate switch is part of the fixed wiring, so adding another control point may require additional cabling.

Before installation, a qualified electrician should check:

  • Switch type and rating: the mechanism must suit its position in the circuit and the connected lighting load.
  • Terminal markings: physical layouts vary, so connections must follow the product’s wiring diagram.
  • Back-box space: the box must meet the product’s depth requirement and accommodate the wiring.
  • Wiring condition and earthing: existing connections and any metal accessories need appropriate assessment.

Fixed-wiring alterations should be carried out by a qualified electrician, with the circuit safely isolated and verified dead before work begins.

Can Intermediate Switches Be Used With Dimmers or Smart Controls?

A conventional intermediate switch provides on/off control, not brightness adjustment.

Some dimmers support a circuit with conventional two-way and intermediate switches, allowing brightness adjustment at the dimmer and on/off control elsewhere. Other dimmers require dedicated companion controls. Always check the exact product instructions.

If you want to adjust brightness from several locations, choose a system specifically designed for multi-point dimming. Replacing each switch with an ordinary dimmer is not a universal solution.

Smart switches also vary. Some work with conventional intermediate switches; others use companion switches or wireless controls. Check the supported arrangement and neutral requirements before choosing an upgrade.

Choosing Repenic Controls for a Multi-Way Lighting Scheme

For hallways and staircases where several controls are visible together, coordinated finishes help them feel like part of the interior.

Repenic’s conventional switch range includes two-way and intermediate options, with Toggle and Rocker designs and finishes including Brushed Brass, Brushed Stainless Steel, Matt White and Matt Black. This lets you choose the function each position needs while keeping a consistent appearance throughout the space.

If you also want connected control, the Repenic Zigbee Smart Toggle Switch supports multi-way operation with conventional two-way and intermediate switches. It requires a neutral wire, while a compatible Zigbee gateway enables app control, scenes and automations alongside familiar physical operation.

The Repenic Zigbee Smart Dimmer uses a different arrangement: it requires designated Repenic Multiway Dimmers for multi-location control and must not be wired directly to conventional two-way or intermediate switches.

Conclusion

For on/off control from three or more locations, choose two two-way switches with one or more intermediate switches between them. For brightness adjustment from several locations, choose a dedicated multi-point dimming system with compatible controls.

Once the control arrangement is clear, check the installation requirements and choose finishes that sit naturally alongside the room’s other details.

FAQs

Does an Intermediate Switch Need a Neutral Wire?

A conventional mechanical intermediate switch does not need a neutral for its switching function. Whether a neutral is present in the wall box depends on the installation. Electronic or smart controls may have different requirements.

Is an Intermediate Switch the Same as a Three-Gang Switch?

No. “Intermediate” describes the switching function; “gang” describes the number of controls on a faceplate. A three-gang switch has three separate controls, but that does not mean it controls one light from three locations.

Intermediate switches are also available in two-gang, three-gang and other configurations, allowing separate lighting groups to have their own intermediate control on the same plate.

Can I Replace a Two-Way Switch With an Intermediate Switch?

Some intermediate switches can be configured for two-way operation, where the manufacturer’s instructions permit it. An ordinary two-way switch cannot provide the crossover function needed at an intermediate position. Have an electrician confirm the correct replacement.
