0–10V and TRIAC are two different ways of controlling light levels, but they are designed for different types of lighting systems. 0–10V dimming uses a separate low-voltage control signal between a dimmer and a compatible LED driver, while TRIAC dimming controls the AC power supplied to a compatible lamp by using phase-cut control.
For most UK homeowners replacing a wall dimmer, TRIAC-compatible LED lighting is usually the more straightforward option because it can work with existing mains wiring. 0–10V is more common where the lighting installation has been designed around compatible drivers and dedicated control wiring.
Table of Contents
- How Do 0-10V and TRIAC Dimming Work?
- Which One Is Better for LED Lighting?
- What About Installation, Wiring and Cost?
- Which Should You Choose for a UK Home?
- What Should You Check Before Buying a Dimmer?
- Conclusion
- FAQs

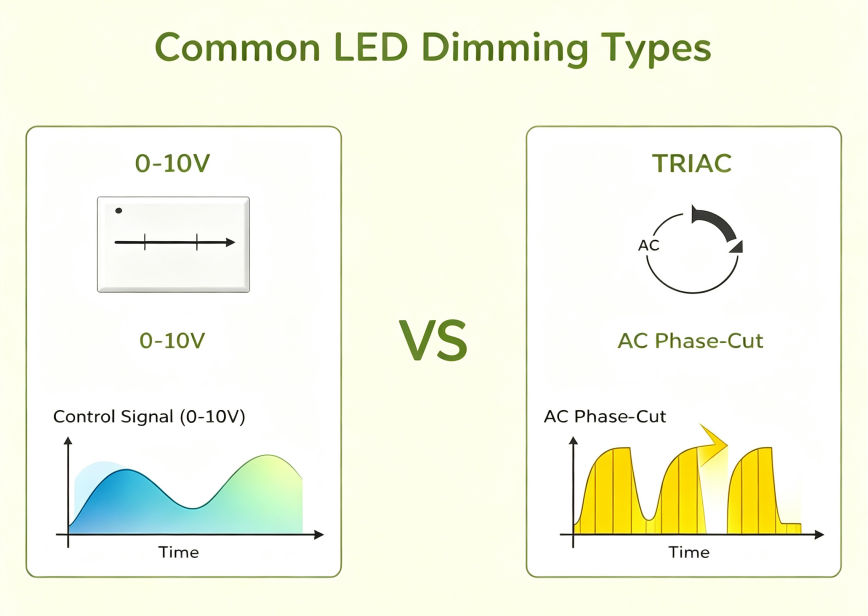

How Do 0-10V and TRIAC Dimming Work?
The main difference is how the dimming command reaches the light.
With 0–10V dimming, the dimmer sends a low-voltage analogue signal to a compatible LED driver through separate control terminals, commonly marked D+ and D−. The driver interprets this signal and adjusts the light output accordingly. The exact relationship between the control voltage and light output depends on the driver, so 0V should not automatically be assumed to mean completely off.
TRIAC dimming works differently. Instead of sending a separate control signal to the driver, the dimmer changes the AC waveform supplied to the lamp using phase-cut control. Depending on the dimmer and load, this may use leading-edge or trailing-edge control.
Which One Is Better for LED Lighting?
Neither technology is universally better. The most important factor is compatibility between the dimmer, driver and lamp.
A 0–10V system requires a lighting driver specifically designed to accept a 0–10V control signal. If the driver does not have the appropriate control input, a 0–10V dimmer cannot control it correctly.
TRIAC dimming is widely used with compatible dimmable LED lamps and drivers, but LED compatibility still matters. A lamp may be labelled as dimmable without working well with every phase-cut dimmer. Symptoms of poor compatibility can include flickering, buzzing, an uneven dimming range or the light switching off before reaching the lowest setting.
For this reason, check the manufacturer's compatibility information before choosing either type of dimmer. A dimmable LED is not automatically compatible with every dimming method.
It is also worth noting that 0–10V should not be described as automatically flicker-free. A properly matched 0–10V system can provide smooth and stable dimming, but the final performance still depends on the driver and lighting equipment.
What About Installation, Wiring and Cost?
The biggest practical difference for a retrofit is the wiring.
0-10V dimming installation needs an additional pair of low-voltage control wires between the dimmer and the compatible driver. This means that a 0–10V installation needs to be planned around both the mains supply and the separate control connection. Retrofitting the system into an existing UK home can therefore be more involved if the required control wiring is not already present.
TRIAC dimmers normally control the lighting load through the mains circuit itself, so they can be more convenient when replacing an existing wall dimmer without adding a separate control pair.
| Aspect | 0–10V Dimming | TRIAC Dimming |
|---|---|---|
| Control method | Separate low-voltage analogue signal | AC phase-cut control |
| Compatible equipment | 0–10V-compatible driver required | Compatible dimmable lamp/driver required |
| Additional control wiring | Typically required | Not normally required |
| Retrofit complexity | Higher when control wiring is absent | Generally simpler |
| Typical applications | Commercial and designed lighting systems | Residential and retrofit lighting |
| Dimming performance | Smooth when correctly matched | Smooth when correctly matched |
| Main compatibility concern | Driver and control signal compatibility | Lamp/driver and phase-cut compatibility |
Cost should also be considered as part of the whole installation rather than by comparing the price of the dimmer alone. A 0–10V system may require compatible drivers and additional control wiring, while a TRIAC retrofit may be simpler when the existing wiring and lighting equipment are already suitable.
Which Should You Choose for a UK Home?
For a typical UK home, start by looking at the lighting equipment you already have.
Choose 0–10V when:
- Your LED fixtures use compatible 0–10V drivers.
- The lighting system has, or can accommodate, the required control wiring.
- You want a dedicated analogue control system for compatible fixtures.
- You are planning a new lighting installation or a larger project where the wiring can be designed from the beginning.
Choose TRIAC when:
- You are replacing an existing wall dimmer.
- Your lamps or LED drivers specifically support compatible phase-cut dimming.
- You want to minimise changes to existing mains wiring.
- You are upgrading lighting in a typical UK residential setting.
For UK retrofits, also check the available space behind the wall plate and whether a neutral connection is present before purchasing a smart dimmer. These details can affect which products are suitable for an existing circuit.
For homeowners who want smart control as well as physical wall control, Repenic's Zigbee Smart Dimmer is designed for compatible dimmable LED, halogen and incandescent lamps, supports both leading- and trailing-edge dimming, and does not require a neutral wire. It is designed for 220–240V UK two-wire lighting circuits and fits a standard 25mm back box. A compatible Zigbee gateway is required for app-based smart features, while normal manual control remains available at the wall.
For lighting systems that already use compatible 0–10V drivers, Repenic also offers a dedicated 0–10V dimmer with separate D+ and D− control terminals and a UK 25mm back-box design. This is a different type of dimming solution from its Zigbee phase-cut dimmers and should only be used with equipment designed for 0–10V control.
What Should You Check Before Buying a Dimmer?
Before choosing between 0–10V and TRIAC, check these points:
- Check the lamp or fixture. Confirm whether it is dimmable and which dimming method it supports.
- Check the driver. For integrated or separate LED drivers, verify that the driver is compatible with the selected dimming technology.
- Check the wiring. A 0–10V system normally needs dedicated control wiring, while a TRIAC retrofit can often use the existing lighting circuit.
- Check the wall box. Make sure there is enough space for the chosen dimmer and its wiring.
- Check the neutral connection. This is particularly important when selecting a smart dimmer for an existing UK lighting circuit.
- Check the minimum and maximum load. Do not choose a dimmer based only on the total wattage; follow the manufacturer's specified load type and limits.
- Check the dimming range. If low-level dimming is important, confirm that the lamp, driver and dimmer can operate reliably at the brightness level you need.
Conclusion
The key difference between 0–10V and TRIAC dimming is the way the dimming signal is delivered. 0–10V uses a separate low-voltage control signal and requires compatible drivers, while TRIAC controls the AC power supplied to compatible lamps or drivers through phase-cutting.
For new lighting systems with compatible drivers and planned control wiring, 0–10V can provide precise and smooth control. For many UK residential retrofits, TRIAC-compatible dimming can be more practical because it can work with existing mains wiring.
Whichever system you choose, compatibility should come first. Checking the lamp, driver, dimmer, wiring and load requirements before installation is the best way to avoid flickering, buzzing and an unsuitable dimming range.
FAQs
Is 0–10V better than TRIAC dimming?
Not necessarily. They are different control methods designed for different lighting systems. 0–10V can be an excellent choice when the installation uses compatible drivers and dedicated control wiring, while TRIAC is often more practical for compatible residential lighting and retrofit applications.
Does 0–10V dimming require extra wiring?
Typically, yes. A 0–10V system uses a separate pair of control wires between the dimmer and compatible driver. The exact wiring arrangement depends on the equipment and installation.
Can I use a TRIAC dimmer with any LED bulb?
No. The LED bulb or its driver must be compatible with the type of phase-cut dimming used by the dimmer. Otherwise, you may experience flickering, buzzing or an unstable dimming range.
Is 0–10V dimming completely flicker-free?
Not automatically. A correctly matched 0–10V system can provide smooth, stable dimming, but performance depends on the dimmer, driver and lighting fixture.
