In a typical UK two-wire lighting circuit, a compatible no-neutral dimmer connects between the permanent live supply and the switched live going to the light. The neutral usually remains at the light fitting rather than being connected to the wall switch.
For a standard single-way installation, the permanent live connects to the dimmer’s L terminal, while the switched live to the light connects to L1. The earth connection must still be correctly maintained.
Before installation, check that the dimmer is designed for no-neutral wiring and that the connected LED lamp or driver is dimmable and compatible with the dimmer. Because this work involves mains electricity, installation should be carried out by a qualified electrician with the supply safely isolated.
Table of Contents
- How Does a 2-Wire Dimmer Work?
- Which LEDs Can Be Used with a 2-Wire Dimmer?
- Why Is My LED Flickering, Buzzing or Cutting Out?
- Choosing a Dimmer That Works with the Room Too
- FAQs
How Does a 2-Wire Dimmer Work?
A two-wire dimmer does not mean the lighting circuit has no neutral at all. In many UK lighting circuits, the neutral remains at the ceiling rose or light fitting and is simply not brought down to the wall switch.
A no-neutral dimmer is designed to work using the live and switched-live connection already present at the switch. This makes it useful when upgrading an existing lighting circuit without adding a new neutral wire.
It is also important not to confuse 2-wire with 2-way. Two-wire describes the live and switched-live arrangement at the dimmer, while 2-way means the same light can be controlled from more than one location, such as the top and bottom of a staircase.
Exact terminal markings and wiring arrangements can vary between products, so the manufacturer’s wiring diagram should always take priority.
Which LEDs Can Be Used with a 2-Wire Dimmer?
Start with an LED lamp or driver that is explicitly marked as dimmable. Then check that the load falls within the dimmer’s supported range and that the lamp or driver works with its dimming method.
Different LED drivers can behave differently, even when they are all labelled dimmable. Some work better with trailing-edge dimming, while others may support leading-edge control. This is why the dimmer and LED should be considered together rather than chosen separately.
The Repenic Zigbee Smart Dimmer Switch supports both trailing- and leading-edge dimming, with trailing edge as the default. Its adjustable minimum brightness can help improve low-level dimming, while Boost can help compatible lamps that struggle to switch on at a low brightness.
Why Is My LED Flickering, Buzzing or Cutting Out?
Flickering, buzzing or cutting out at low brightness does not always mean the wiring is wrong. It can also be caused by an incompatible lamp or driver, a load outside the dimmer’s supported range, an unsuitable dimming mode or the minimum brightness being set too low.
Start by confirming that the lamp or driver is dimmable and within the supported load range. Then check the dimming mode and minimum brightness setting.
With the Repenic Zigbee Smart Dimmer Switch, Boost can also help if a compatible lamp struggles to switch on reliably at a low brightness.
Do not add a bypass simply because a dimmer does not use a neutral. Bypass requirements are product-specific and should only be followed where the manufacturer specifies one.
Choosing a Dimmer That Works with the Room Too
Once the wiring and LED compatibility are right, the dimmer itself is still a visible part of the room and something you use every day.

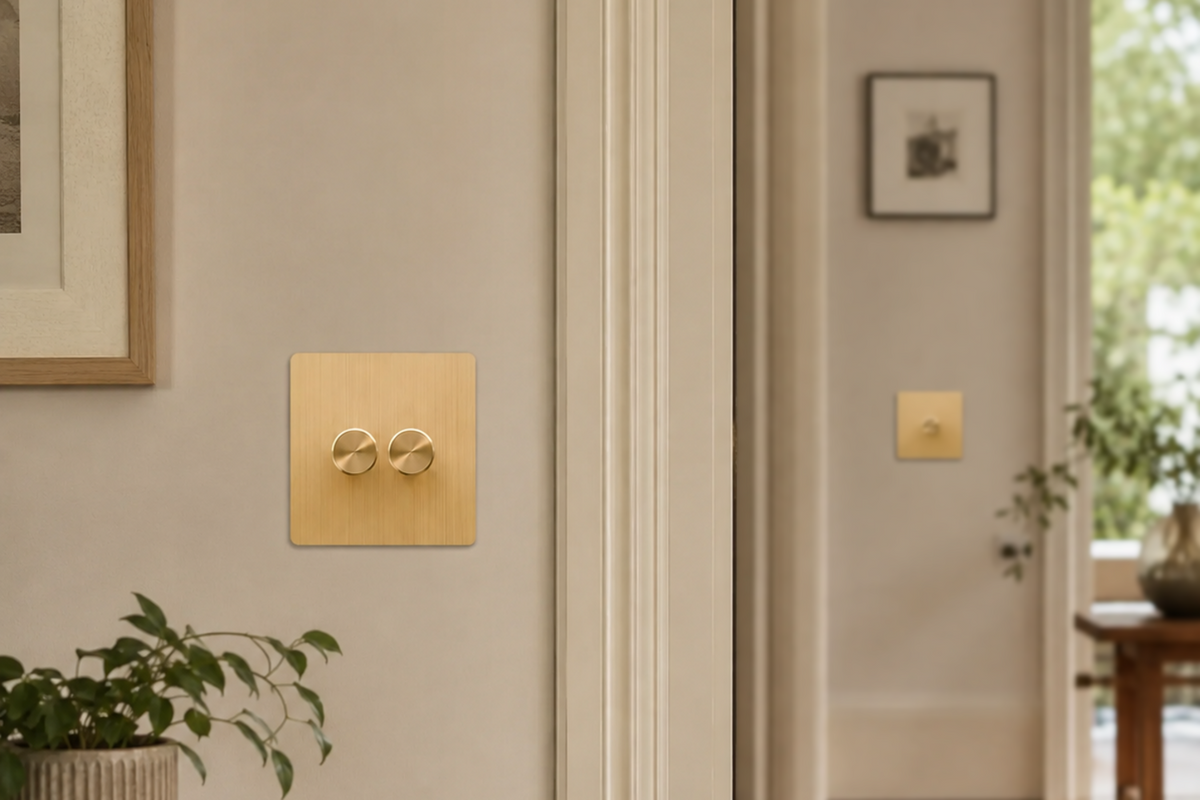

The Repenic Zigbee Smart Dimmer Switch is designed for UK no-neutral lighting circuits and combines smart LED dimming with a tactile rotary control. The range comes in coordinated finishes including brushed brass, brushed stainless steel, matt white and matt black, making it easier to match the dimmer with switches, sockets and other details across the interior.
Since the dimmer remains visible and in daily use, its finish and control feel are also worth considering alongside technical compatibility.
FAQs
Do I need a neutral wire?
Not if the dimmer is specifically designed for no-neutral operation. In a typical UK two-wire lighting circuit, the neutral usually remains at the light fitting rather than being connected to the wall switch.
Can I use smart bulbs?
Generally, smart bulbs should not be dimmed with a conventional phase-cut dimmer because they normally need a constant power supply and control brightness through their own system. Always check the compatibility guidance for both products.
Can a 2-wire dimmer work in a 2-way circuit?
It depends on the dimmer. Two-wire and 2-way describe different things, so multi-location control needs a product and wiring arrangement designed for that purpose.
The Repenic Zigbee Smart Dimmer Switch can support 2-way or multi-point control when used with the compatible Repenic Multi-Point Rotary Dimmer Switch.
What back-box depth do I need?
This depends on the product. The Repenic Zigbee Smart Dimmer Switch requires a back box of at least 25 mm.
