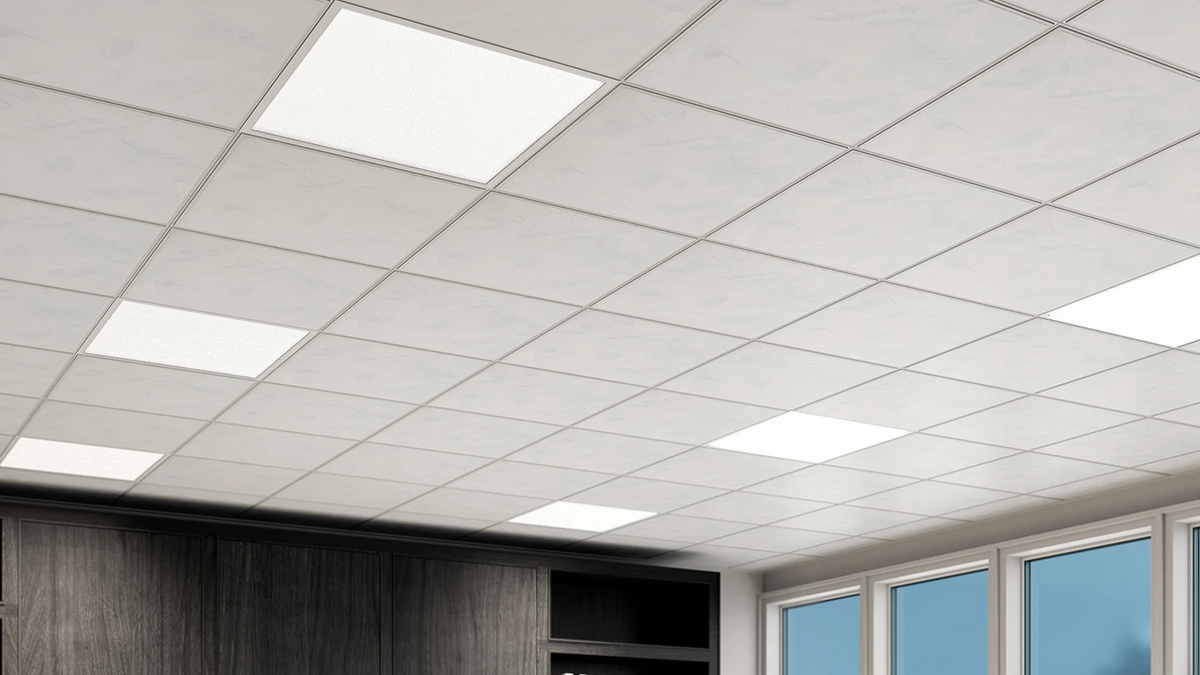

Installing a flat panel LED light in a suspended ceiling involves checking the panel size, securing it within the ceiling grid, connecting the driver and testing the installation.
This guide covers typical UK installations. Mains electrical work can be dangerous, so fixed-wiring work should be carried out by a competent electrician in accordance with BS 7671 and applicable Building Regulations. In England, Part P applies to electrical work in dwellings where relevant. Isolate and verify the circuit before starting.
Table of Contents:
- Before You Start
- Step 1: Isolate the Circuit and Remove the Existing Light
- Step 2: Prepare the LED Panel and Driver
- Step 3: Fit the Panel into the Ceiling Grid
- Step 4: Secure the Panel
- Step 5: Complete the Electrical Connection
- Step 6: Inspect and Test the Installation
- Choose the Right Dimmer or Lighting Control
- FAQs
Before You Start
Before removing the existing fitting, check these three points:
| Check | What to Look For | Why It Matters |
|---|---|---|
| Panel size | Actual dimensions and ceiling grid size | Nominal sizes such as 600 × 600 mm do not always match the product's exact dimensions |
| Support | Clips, safety cable or additional support specified by the manufacturer | A lay-in panel may require more than the T-grid alone |
| Ceiling void | Enough space for the panel, driver, cables and connection enclosure | Prevents the driver or cables from being trapped or overcrowded |
You may need the LED panel and driver, suitable access equipment, insulated tools, electrical test equipment, connectors, an enclosure and any manufacturer-specified support accessories.
Step 1: Isolate the Circuit and Remove the Existing Light
Isolate the lighting circuit at the consumer unit and verify that it is dead. Then support and disconnect the existing fitting, taking care not to load the supply cable. Inspect accessible wiring for obvious damage, and do not rely on conductor colour alone where existing wiring is unclear, particularly in older installations.
Step 2: Prepare the LED Panel and Driver
Inspect the panel, driver and connecting leads for visible damage.
Check the manufacturer's wiring diagram and confirm that the driver supplied is suitable for the panel.
Some panels have an integrated driver box on the back; others use a separate driver. If the driver is separate from the luminaire, position it so that it is properly supported and does not become trapped between the panel and ceiling grid.
Step 3: Fit the Panel into the Ceiling Grid
Remove the appropriate ceiling tile and make sure the opening is clear.
Lift the LED panel at an angle through the opening, rotate it above the grid and lower it evenly onto the T-sections.
Make sure the panel sits level on all four sides, with no cables trapped underneath. It should fit naturally without being forced into the opening.
If it does not sit properly, recheck the actual panel dimensions and the ceiling grid rather than trying to force it into position.
Step 4: Secure the Panel
A lay-in panel may rest on the grid, but additional restraint may still be required. Follow the manufacturer's specified support method, such as retention clips, safety cable, hangers or independent suspension.
Follow the manufacturer's instructions for any secondary support and make sure the panel is not supported by its electrical connections.
Step 5: Complete the Electrical Connection
With the circuit still isolated, connect the panel according to the manufacturer's instructions and the existing circuit arrangement.
Typical current UK conductor identification is:
| Conductor | Typical Function |
|---|---|
| Brown | Line / Live |
| Blue | Neutral |
| Green-and-yellow | Protective conductor / Earth |
For panels with an integrated driver box, remove the cover, connect the supply and any control wires to the terminal block, then refit the cover.
Use connectors and an enclosure suitable for the conductor type and installation. Make sure flexible leads are properly restrained and that no bare conductor remains exposed.
Panels with emergency lighting, DALI or separate control wiring may require additional connections, so follow the wiring diagram supplied with the product.
Step 6: Inspect and Test the Installation
Before restoring power, make sure the enclosure is closed, the driver and cables are secure, the panel and any secondary support are correctly installed, and the ceiling void is clear. Replace any displaced tiles, restore the supply and test the panel for normal operation.
The light should start consistently and operate without unexpected flicker, buzzing or intermittent behaviour.
Choose the Right Dimmer or Lighting Control
The LED driver determines which type of dimmer or lighting control can be used.
The word “dimmable” does not describe one universal system. Different drivers may use phase-cut, 0–10V/1–10V, DALI or other control methods.
| Driver Type | Suitable Control |
|---|---|
| Phase-cut | Compatible leading- or trailing-edge LED dimmer |
| 0–10V / 1–10V | Dedicated 0–10V / 1–10V controller |
| DALI | DALI-compatible control |
| Non-dimmable | Standard on/off switching |
For example, for compatible phase-cut LED drivers, Repenic Dimmer Switches provide leading- and trailing-edge dimming, while Repenic 0–10V Dimmers are designed for compatible 0–10V lighting systems. For simple on/off control, Repenic Light Switches can be used where dimming is not required.
FAQs
Will Any 600 × 600 LED Panel Fit a Suspended Ceiling?
No. “600 × 600 mm” is usually a nominal size, so check the panel’s actual dimensions, depth and edge profile against the ceiling grid before installation.
Does an LED Panel Need a Safety Cable?
Not always. The required support depends on the luminaire and ceiling system. Follow the manufacturer’s instructions for any retention clips, safety cable, additional hangers or independent support.
Can I Use a Standard LED Dimmer with a Flat Panel?
Only if it matches the LED driver's dimming method. Check whether the driver uses phase-cut, 0–10V/1–10V, DALI or another control system before choosing a dimmer.
Why Does My LED Panel Flicker When Dimmed?
The first thing to check is compatibility between the LED driver and dimmer. An incorrect control type, unsuitable load range or low-end dimming setting can all cause flicker or unstable operation.
