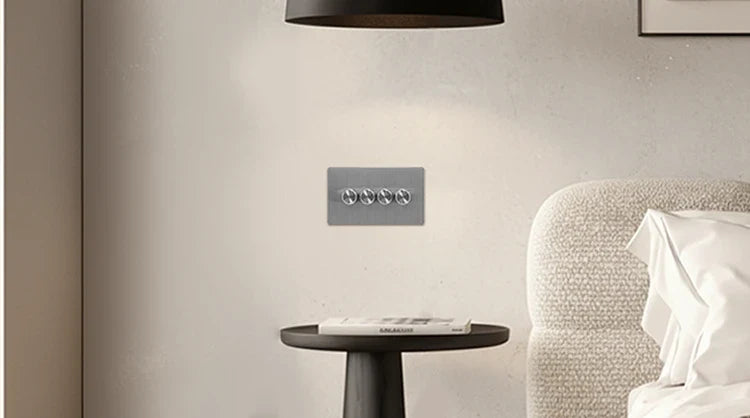

How Do You Properly Wire a 0–10V Dimmer System? A UK Guide

0–10V dimming is widely used in commercial, architectural and larger residential lighting installations where smooth analogue dimming is required. Unlike a conventional mains dimmer, a 0–10V system uses a separate low-voltage control signal to tell a compatible LED driver how much light to produce.

That difference is important when planning or modifying a UK lighting circuit. The mains supply, LED driver and 0–10V control wiring must all be compatible, while the control conductors also need to be installed with appropriate consideration of circuit segregation.

This guide explains how a typical 0–10V dimming system is arranged, what to check before installation, how multiple fittings can be controlled, and what UK-specific considerations apply when retrofitting one into an existing installation.

Table of Contents

• What Is 0–10V Dimming?
• How Do You Wire a Single 0–10V LED Fixture?
• How Do You Wire Multiple Fixtures to One 0–10V Dimmer?
• What Should You Check Before Wiring a 0–10V System?
• Do 0–10V Control Wires Need to Be Separated from Mains Wiring?
• What Is the Difference Between 0–10V and 1–10V Dimming?
• Does 0V Mean the Light Is Completely Off?
• What Are the Main Safety Considerations?
• Where Is 0–10V Dimming Commonly Used?
• 0–10V vs Phase-Cut Dimming: What Is the Difference?
• Can You Use a Repenic 0–10V Dimmer?
• Can You Retrofit 0–10V Lighting with Smart Control?
• When Should You Use a Qualified Electrician?
• FAQs
• 0–10V Wiring Checklist

What Is 0–10V Dimming?

0–10V dimming is an analogue lighting-control method that uses a low-voltage DC signal to control a compatible LED driver.

The lighting fixture receives its normal mains supply separately from the control signal. The 0–10V pair then communicates the desired dimming level to the driver.

In a simplified arrangement:

• Mains circuit: supplies power to the LED driver and light fitting.
• 0–10V control circuit: carries the analogue dimming signal.
• LED driver: converts the mains supply into the appropriate output for the LED module and responds to the control signal.
• 0–10V controller: generates or regulates the control voltage.

This means a 0–10V dimmer is not simply replacing a conventional wall dimmer on the mains conductors. The driver must specifically support the relevant analogue control interface.

How Do You Wire a Single 0–10V LED Fixture?

A typical single-fixture installation contains two separate parts: the mains supply to the driver and the 0–10V control connection.

At a high level, the arrangement is:

1. The mains supply connects to the LED driver's specified mains input terminals.
2. The LED driver's output connects to the LED fixture or LED module according to the manufacturer's instructions.
3. The two 0–10V control conductors connect between the compatible controller and the driver's 0–10V control terminals.
4. The control pair is routed using an installation method suitable for the circuit classification and required segregation.
5. The system is tested to confirm that the driver responds correctly across the intended dimming range.

Do not rely on generic wire colours or terminal labels from another product. UK manufacturers may identify terminals differently, and some control equipment has specific polarity requirements.

Always use the wiring diagram supplied with the exact LED driver and controller being installed.

How Do You Wire Multiple Fixtures to One 0–10V Dimmer?

One of the main advantages of 0–10V control is that a single controller can often control multiple compatible LED drivers.

In a typical installation, the mains supply to the drivers is arranged according to the lighting circuit design, while the 0–10V control pair is connected across the compatible drivers in accordance with the manufacturer's maximum control capacity.

The control side is therefore generally arranged as a parallel connection rather than placing each driver in series with the next.

For larger installations, the controller's capacity, cable routing, voltage drop and system architecture should be assessed before installation.

What Should You Check Before Wiring a 0–10V System?

Before installing a 0–10V dimmer, check the complete control chain rather than looking at the LED fitting alone.

1. Does the LED driver support 0–10V?

The driver must explicitly support the relevant 0–10V analogue control interface. A conventional mains-dimmable LED driver cannot automatically be controlled by a 0–10V dimmer.

2. Are the controller and driver compatible?

Check the manufacturer's specifications for the control voltage range, polarity, control current and control architecture.

3. What is the minimum dimming level?

Some drivers can dim very low, while others have a higher minimum output. The usable dimming range therefore depends on the driver as well as the controller.

4. Does the system support dim-to-off?

A minimum control signal does not necessarily mean that the LED output will fall completely to zero. If full switch-off is required, check whether the driver or controller provides an appropriate switching function.

5. How many drivers can the controller operate?

For multi-fixture installations, check the controller's specified control capacity and the current requirements of the connected drivers.

6. What cable arrangement is required?

Follow the manufacturer's requirements for conductor type, insulation, polarity and installation method. Do not assume that any spare low-voltage pair can simply be routed alongside mains conductors.

Do 0–10V Control Wires Need to Be Separated from Mains Wiring?

This is an important consideration in UK installations.

Although the 0–10V signal is low voltage, it may form part of a circuit that needs appropriate segregation from mains circuits. BS 7671 includes requirements concerning the separation and segregation of different circuit categories. Regulation 528.1 addresses the installation of Band II circuits in relation to Band I circuits.

The exact method depends on the equipment, cable construction, insulation, containment and installation arrangement. Therefore, a 0–10V pair should not simply be assumed to be suitable for unrestricted installation inside the same conduit, trunking or enclosure as mains conductors.

Where mains and control conductors share an installation route, use an arrangement that satisfies the applicable requirements and the equipment manufacturer's instructions.

What Is the Difference Between 0–10V and 1–10V Dimming?

0–10V and 1–10V are related analogue dimming methods, but they should not automatically be treated as interchangeable.

The key difference is the way the control range and control-device/driver interface are implemented. Different manufacturers and systems may use different current-sourcing or current-sinking arrangements, minimum control levels and switch-off behaviour.

For this reason, a 0–10V controller should only be connected to a driver that explicitly confirms compatibility.

Do not choose between a 0–10V and 1–10V controller based solely on the label. Check the actual technical specification of the driver and controller, including control voltage, polarity, current and dimming range.

Does 0V Mean the Light Is Completely Off?

Not necessarily.

One common misconception is that sending the control signal to 0V automatically switches the lighting completely off.

In practice, the minimum output depends on the LED driver's design. Some drivers reduce the light output to a very low level but do not completely disconnect the LED load.

If the installation requires a true electrical switch-off, the system may need a separate switching function. Some controllers incorporate a mains relay for this purpose, while other systems rely on the driver's own behaviour.

Therefore, always check the manufacturer's documentation for:

• minimum dimming level
• dim-to-off capability
• standby behaviour
• mains switching requirements
• compatibility with external relays or switching devices

What Are the Main Safety Considerations?

0–10V systems combine mains-voltage equipment with a separate control circuit, so installation should be treated as electrical work rather than simply low-voltage wiring.

Isolate the circuit

Before working on an existing installation, the relevant circuit should be safely isolated and proved dead using suitable electrical test equipment.

Follow the manufacturer's wiring diagram

Do not assume that all 0–10V drivers use identical terminal arrangements or control requirements.

Maintain appropriate segregation

Where mains and control conductors are routed together, ensure the installation method provides the required separation or insulation arrangement.

Check the driver's specifications

Confirm the driver's input voltage, LED load, dimming interface, minimum dimming level and control-current requirements.

Do not overload the controller

When controlling several drivers, confirm that the controller can support the total connected control load.

For fixed wiring alterations, particularly where existing circuits need modification, use a suitably qualified electrician where required.

Where Is 0–10V Dimming Commonly Used?

0–10V control is particularly useful where lighting needs to be dimmed smoothly across multiple fittings or integrated into a wider lighting-control system.

Common applications include:

• commercial lighting
• offices
• hospitality spaces
• architectural lighting
• large residential properties
• LED panels and linear lighting
• spaces requiring centralised analogue dimming

For smaller domestic installations, however, a conventional mains dimmer may be simpler if the chosen LED driver or lamp supports phase-cut dimming.

0–10V vs Phase-Cut Dimming: What Is the Difference?

The important point is that these systems control the driver in different ways. A phase-cut dimmer cannot simply be connected to a 0–10V input, and a 0–10V controller cannot automatically replace a phase-cut dimmer.

Can You Use a Repenic 0–10V Dimmer?

For installations using compatible 0–10V LED drivers, Repenic offers a dedicated 0–10V dimmer collection designed for this type of analogue lighting control.

The range is available in finishes including brushed brass, stainless steel, matt black and matt white, allowing the control point to coordinate with the rest of the electrical accessories in a UK interior.

As with any 0–10V installation, the dimmer should be matched to the LED driver's control specification before installation.

Can You Retrofit 0–10V Lighting with Smart Control?

Yes, but the best approach depends on the existing driver and the type of smart control you want to introduce.

Option 1: Keep the existing 0–10V drivers

If the existing LED drivers are compatible with the required 0–10V control interface, a compatible 0–10V controller can be introduced without replacing the drivers.

This is usually the most straightforward approach when the existing lighting system is already designed around 0–10V control.

Option 2: Convert to phase-cut dimming

Another possibility is to replace a compatible 0–10V driver with a suitable mains phase-cut dimmable driver and then use a compatible smart phase-cut dimmer.

However, this is not suitable for every LED panel or fixture. The replacement driver must be compatible with the LED module, electrical load, enclosure and required dimming method.

Where the existing fixture is an integrated LED panel, check whether its driver can actually be replaced before planning this type of conversion.

When Should You Use a Qualified Electrician?

A 0–10V system can involve both mains-voltage circuits and additional control wiring, so professional installation is recommended where the work involves modifying fixed wiring.

Use a suitably qualified electrician when:

• new mains wiring needs to be installed
• an existing lighting circuit needs to be modified
• a new back box or accessory arrangement is required
• additional control cables need to be routed
• mains and control circuits need to share containment or an installation route
• an existing 0–10V system needs to be converted to another dimming method
• you are unsure whether the existing installation meets the applicable requirements

For a retrofit project, the safest approach is to identify the existing driver and control system first, then select the replacement control equipment around those specifications.

FAQs

Can I use a standard dimmer switch for a 0–10V LED driver?

No. A standard mains phase-cut dimmer is not automatically compatible with a 0–10V LED driver. The driver must support the dimming method used by the controller.

Can multiple LED drivers be controlled by one 0–10V dimmer?

Yes, provided the drivers and controller are compatible and the total control load remains within the controller's specified capacity.

Does 0V always mean the LED light is completely off?

No. Some LED drivers reduce the output to a very low level without completely switching the LEDs off. Check the driver's dim-to-off specification if full switch-off is required.

Is a relay required for 0–10V dimming?

Not necessarily. A relay may be used when true mains switch-off is required but the LED driver does not provide dim-to-off. Whether one is required depends on the driver and controller architecture.

Are 0–10V and 1–10V the same?

No. They are related analogue control methods, but their control architecture and operating range can differ. Always check compatibility between the specific driver and controller.

Can a Repenic 0–10V dimmer control any LED panel?

No. The LED panel's driver must support the relevant 0–10V control interface and meet the controller's electrical and control requirements.

Can I use a Repenic Zigbee dimmer with a 0–10V LED driver?

Not directly. Repenic Zigbee smart dimmers are designed for compatible mains phase-cut dimmable loads, whereas a 0–10V driver requires a compatible 0–10V control signal.

Is 0–10V suitable for UK homes?

Yes. 0–10V can be used in residential lighting where the LED drivers, controller and wiring arrangement are designed for it. It is particularly useful where multiple fittings need coordinated analogue dimming.

0–10V Wiring Checklist

• ☐ Confirm that the LED driver supports 0–10V control.
• ☐ Confirm that the controller and driver use a compatible control architecture.
• ☐ Check the driver's minimum and maximum dimming range.
• ☐ Check whether dim-to-off is supported.
• ☐ Check the maximum number of drivers the controller can operate.
• ☐ Follow the manufacturer's wiring diagram.
• ☐ Use the correct conductor type and installation method.
• ☐ Maintain appropriate segregation between mains and control circuits.
• ☐ Check the available space in the existing back box.
• ☐ Confirm that the chosen accessory fits the available back box depth.
• ☐ Safely isolate and prove dead before working on existing wiring.
• ☐ Use a suitably qualified electrician for fixed wiring modifications where required.

Conclusion

Wiring a 0–10V dimmer system is different from installing a conventional domestic dimmer because the lighting load and analogue control signal are handled separately.

The key to a reliable installation is compatibility. The LED driver must support the required 0–10V interface, the controller must be suitable for the connected drivers, and the control wiring must be installed with appropriate consideration of UK electrical requirements and circuit segregation.

For existing installations, identify the LED driver and control method before choosing replacement equipment. If you are upgrading a 0–10V system, you can either retain compatible 0–10V drivers and introduce suitable control equipment, or investigate whether a compatible phase-cut driver and smart dimmer would be a better solution.

For UK interiors where the electrical accessory is also part of the design, Repenic's 0–10V dimmers provide a dedicated option for compatible analogue lighting systems, while the Zigbee smart dimmer range is intended for compatible mains phase-cut dimmable loads.
