To calculate the load for an LED dimmer switch, add the actual input wattage of the connected lamps or fittings and compare it with the dimmer’s manufacturer-specified LED rating. Then check compatibility, minimum load, lamp-count limits and any installation-specific derating.
Do not assume that an incandescent rating divided by ten gives a valid LED rating. A dimmer marked “400 W” for incandescent lamps is not automatically approved for 40 W of LEDs.
This guide explains the calculation, why wattage alone is not enough, and what to check when choosing a dimmer for a UK home.
Start with the Correct LED Rating
Find the exact dimmer model and its installation instructions. Look for a rating explicitly covering the LED load you intend to connect.
A product may have different limits for LED, incandescent and halogen loads. It may also specify different capacities for particular operating modes or mounting arrangements.
If the documentation gives only an incandescent rating, do not invent an LED rating. Ask the manufacturer to confirm suitability for the proposed lamps, or choose a dimmer with documented LED compatibility.
The label “LED compatible” is also not a guarantee that every dimmable lamp will work satisfactorily. Check the exact lamp or driver model wherever compatibility information is available.
Is the “Divide by Ten” Rule Reliable?
Not as a universal calculation. LED drivers have different electrical characteristics, and their demands on a dimmer cannot be reduced to one fixed conversion factor.
An LED load may produce a brief startup surge and repetitive current peaks during operation. The size and shape of those currents vary between drivers, even when their rated wattages are similar.
Lutron’s application note on LED loading explains why traditional lamp ratings cannot simply be applied to LEDs and why the permitted load can depend on the specific lamp and control combination.
Consequently, neither of these assumptions is reliable:
- A 400 W incandescent dimmer automatically supports 40 W of LEDs.
- A 600 W incandescent dimmer automatically supports 60 W of LEDs.
A manufacturer may publish specific guidance for a particular product. Follow that guidance within its stated conditions rather than extending it to other dimmers.
How to Calculate Your Total LED Load
For identical lamps:
Total LED input power (W) = number of lamps × actual input power per lamp (W)
For lamps or fittings with different ratings, add their individual input powers. This arithmetic does not establish that mixing those products on one dimmer is supported.
Use the complete fitting’s rated mains input where available. For an external-driver installation, do not confuse LED-module output power with the driver’s mains input requirements.
| Connected lighting | Calculation | Total rated input |
|---|---|---|
| Six 5 W lamps | 6 × 5 W | 30 W |
| Ten 6 W lamps | 10 × 6 W | 60 W |
| Eight 8 W fittings | 8 × 8 W | 64 W |
Next, compare the total with the applicable LED rating after any required derating.
For example, a 60 W group falls within an applicable 100 W LED limit on wattage alone. It exceeds an applicable 50 W limit. In either case, compatibility and any lamp-count conditions must also be considered.
What Else Must You Check?
Minimum Load
Some dimmers require a minimum connected load for correct operation. Others specify no minimum load for particular supported applications.
Check the LED-specific requirement rather than borrowing a minimum stated for incandescent lamps. A very small load may produce unstable operation even though it is well below the maximum rating.
Lamp-Count Limits and Driver Current
A dimmer may specify both a wattage limit and a maximum number of lamps. Both limits apply.
For example, a proposed group may fit within the wattage allowance but exceed the permitted lamp count. Reducing lamp wattage does not automatically remove that restriction.
VARILIGHT’s LED dimmer guide lists wattage ratings alongside lamp-count limits for several ranges, illustrating why both figures need checking.
Dimming Method and Compatibility
A phase-cut dimmer and LED driver must support a compatible operating method. Leading-edge and trailing-edge modes are not interchangeable for every driver.
Likewise, a driver designed only for 0–10V or DALI control must not be assumed to work with a phase-cut wall dimmer.
Where a dimmer offers selectable modes or brightness adjustment, follow its instructions. Calibration can help an approved lamp combination operate correctly, but it does not increase the permitted load.
Multi-Gang and Installation Derating
Derating means using a lower permitted load under specified conditions. A manufacturer may require it when several dimmer modules share a faceplate or when other installation conditions affect operation.
Apply the published figure for the actual installation before comparing it with your lighting load. Do not assume that a single-gang rating remains available in every multi-gang arrangement.
Do You Need to Stay Below 80%?
There is no universal rule requiring every LED dimmer to operate below 80% of its published LED rating. Follow any explicit loading margin or derating requirement in the product documentation and applicable installation design.
Allowing spare capacity can be useful for future planning, but an arbitrary 20% allowance does not prove compatibility or account for every driver-current characteristic.
Equally, staying below 80% of an assumed “incandescent rating divided by ten” does not turn that assumption into a valid LED specification.
Repenic RD-250ZG: Reading the Published Ratings
The official Repenic RD-250ZG installation manual lists the following LED load ranges:
- 5–250 W for R/C loads.
- 5–100 W for R/L loads.
R, C and L refer to resistive, capacitive and inductive load characteristics. The installer must select the appropriate rating for the connected equipment and supported operating mode.
The manual also includes a multi-gang derating chart. Its four-gang entry lists 125 W for R/C loads and 60 W for R/L loads. This is why the headline 250 W figure must not be applied to every installation.

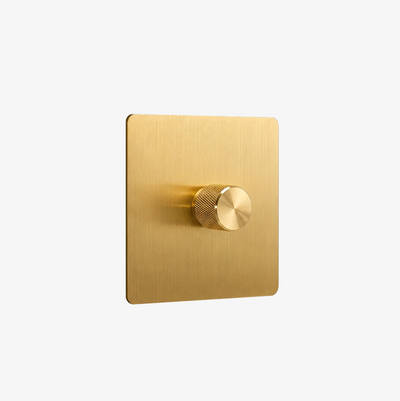

The Repenic Zigbee Smart Dimmer Switch offers no-neutral operation and leading-edge or trailing-edge dimming for compatible loads. Repenic also offers a Smart Dimmer Module format.
Use the documentation supplied for your exact model and version. Smart connectivity and finish options do not alter the load calculation.
UK Installation Considerations
Electrical capacity is only one part of selecting a suitable dimmer for a UK home.
- Supply and wiring: confirm suitability for the installation and whether a neutral connection is required at the switch.
- Back-box space: follow the product’s specified depth and allow adequate room for cables and terminals. A 35 mm minimum does not apply to every LED dimmer.
- Earthing: no-neutral operation does not remove protective-earthing requirements.
- Lighting groups: assess the lamps connected to each dimmer. There is no general requirement for every light on an entire consumer-unit circuit to use one brand.
- Installation limits: cable ratings, circuit protection and other equipment requirements must also be satisfied.
Using the same compatible lamp model within a dimmed group can make performance easier to assess, but a shared brand name alone is not proof of compatibility.
Have fixed-wiring work carried out by a qualified electrician following the applicable requirements and manufacturer’s instructions. Building regulations differ across the UK; the government’s Approved Document P provides guidance for dwellings in England.
When Should You Replace the Dimmer?
Consider replacement when the manufacturer does not confirm LED suitability, the proposed load exceeds an applicable limit, or the intended lamps are incompatible.
A replacement may also be appropriate when you need a supported control method or features that the existing product cannot provide.
Flickering or buzzing does not, by itself, prove overload. Compatibility, settings and electrical faults can also cause poor performance. Investigate the cause before choosing a higher-rated model.
Do not add an unspecified bypass or dummy load to compensate for an unsuitable installation. Use only manufacturer-approved accessories for the exact application.
Frequently Asked Questions
Can a 400 W Dimmer Run Ten 6 W LEDs?
The lamps total 60 W, but the answer depends on the dimmer’s documented LED suitability and limits. If 400 W is only its incandescent rating, that figure does not establish whether the LED group is supported. Changing to a 600 W incandescent dimmer does not automatically solve the issue.
Should I Use Actual or Equivalent Wattage?
Use actual electrical input wattage. A 6 W lamp advertised as “60 W equivalent” counts as 6 W for the initial power calculation, subject to the other compatibility and loading checks.
Does Power Factor Change the Calculation?
Power factor describes the relationship between real power in watts and apparent power in volt-amperes. It varies between LED drivers. Do not assume all LEDs have poor power factor or use it to invent a conversion factor. Check any manufacturer-specified current or VA limits as well as the LED wattage rating.
Can I Exceed the Rating if I Keep the Lights Dimmed?
No. A lower brightness setting does not authorise a connected load above the product’s applicable rating.
Does Zigbee Increase the Dimmer’s Capacity?
No. Zigbee provides wireless communication. Electrical capacity is determined by the dimmer’s design, ratings and installation conditions.
Conclusion
Correct LED dimmer selection starts with the published LED rating, not a conversion from an incandescent rating.
Add the actual lamp or fitting input powers, apply the manufacturer’s required derating, and check minimum load, lamp count and driver compatibility. This provides a sound basis for choosing a suitable dimmer without relying on a universal “divide by ten” or “80%” rule.
