Some LED drivers can operate at full output with their 0–10V control input disconnected, but this is not a universal rule. Whether dimming can be bypassed depends on the exact driver, its documented open-circuit behaviour and the installation’s switching arrangement.
If you want your lights to stay at full brightness, first check whether the existing controller offers a suitable setting. A permanent wiring change should only follow confirmation from the equipment manufacturer and assessment by a qualified electrician.
This guide explains the options, the difference between 0–10V and mains dimming, and the checks that matter in UK installations.
How Does 0–10V Dimming Work?
A 0–10V lighting system uses an analogue control input to tell a compatible LED driver or ballast how much light output is required. The driver also has a separate power supply connection.
The control pair sets the level; it does not supply the main power needed by the light. Terminals may be labelled DIM+ and DIM−, D+ and D−, or another manufacturer-defined equivalent.
A signal near 10 V typically requests maximum output. At the lower end, the light may dim to a minimum level or turn off, depending on the driver. Do not assume that 5 V produces exactly half the perceived brightness, or that every product marked “0–10V” has the same response curve.
Systems described as 1–10V commonly require a separate switching function for complete shutdown. Some 0–10V drivers support dim-to-off, but the datasheet must confirm this. MEAN WELL’s technical FAQs explain the distinction for its driver ranges.
Controller compatibility also depends on how the interface operates. Some arrangements use a driver-supplied control current that the controller sinks; others require an externally supplied control voltage. Match the specified interface rather than relying only on the “0–10V” label.
Does Disconnecting the Control Wires Give Full Brightness?
It can, when the driver is designed to operate that way. An open control input means there is no external connection completing the dimming-control circuit. Certain drivers respond by running at their maximum specified output.
For example, the dimming information for applicable versions of the MEAN WELL HLG-100 series includes an open-input operating condition. This is model-specific information, not evidence that every driver behaves identically.
An open circuit is also not the same thing as applying an external 10 V supply. The driver’s internal design determines the response.
Before considering this approach, an electrician should confirm:
- The exact driver model and dimming variant.
- The manufacturer’s stated behaviour with the control input open.
- How the lighting will be switched fully off.
- Whether other controllers or sensors share the control circuit.
- Whether changing the arrangement affects emergency lighting or other required functions.
Do not cut, disconnect or join unidentified wires to test the result. Identify the equipment and obtain its wiring documentation first.
What Are the Options for Full-Brightness Operation?
The best option depends on whether you want a temporary override, simpler everyday control or a permanent change.
| Option | When it may suit | What must be confirmed |
|---|---|---|
| Use the existing controller’s maximum setting | You want full brightness while retaining dimming. | Whether schedules, sensors or power-restoration settings can change the level. |
| Use an approved preset or override | You want a simple full-brightness command. | That the control system supports it and that required automatic functions remain available. |
| Configure approved operation without a dimming controller | You want permanent fixed-output lighting. | The driver’s documented default output and a suitable on/off switching arrangement. |
| Fit a compatible replacement controller | The current control is faulty or difficult to use. | The control interface, control-current capacity, switching rating and off behaviour. |
Replacing a controller does not necessarily eliminate wiring work. Likewise, fitting an on/off switch does not, by itself, determine what the driver will do with its dimming input.
Can a Standard or Zigbee Dimmer Replace a 0–10V Controller?
A phase-cut dimmer is not a direct replacement for a 0–10V controller. Leading-edge and trailing-edge dimmers alter the mains waveform. A 0–10V controller communicates through a separate analogue input.
A driver that accepts 0–10V control must not be assumed to accept phase-cut mains power. Only use a different dimming method if the driver manufacturer explicitly supports it.
Zigbee describes a wireless communication protocol, not the electrical dimming output. A Zigbee device may control a relay, a phase-cut output or a dedicated analogue interface. Its actual output specification determines whether it is suitable.
Adding a Zigbee gateway does not convert a phase-cut dimmer into a 0–10V controller. For wireless control of an existing analogue system, select a device with an explicitly compatible 0–10V or 1–10V interface and suitable switching provisions.
Which Repenic Products Are Relevant?

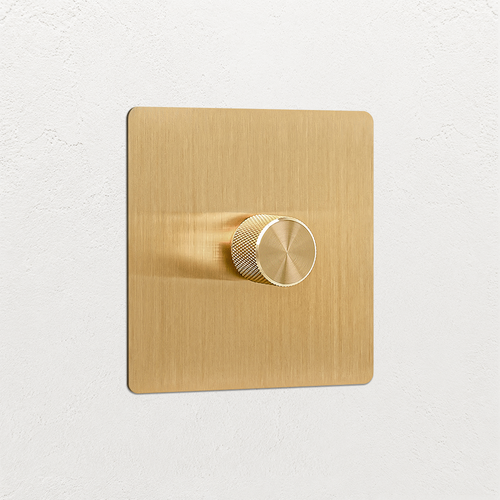

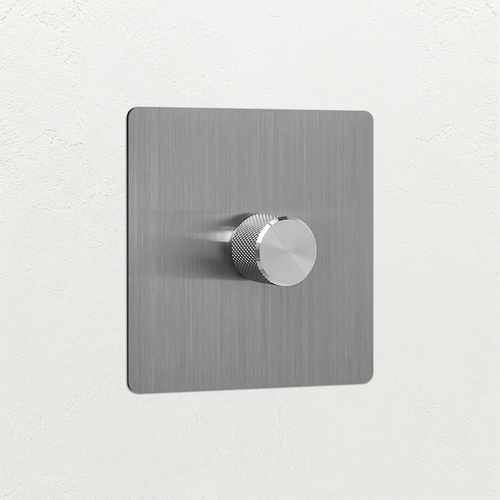

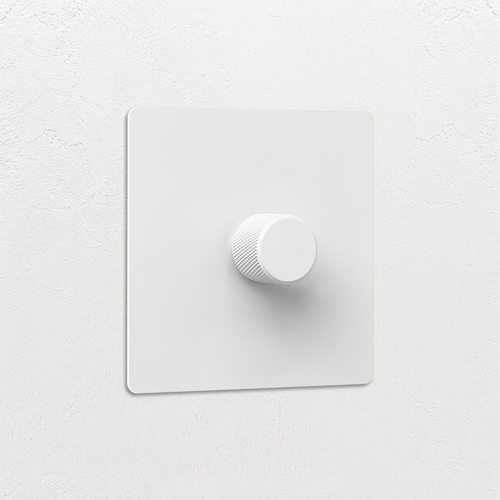

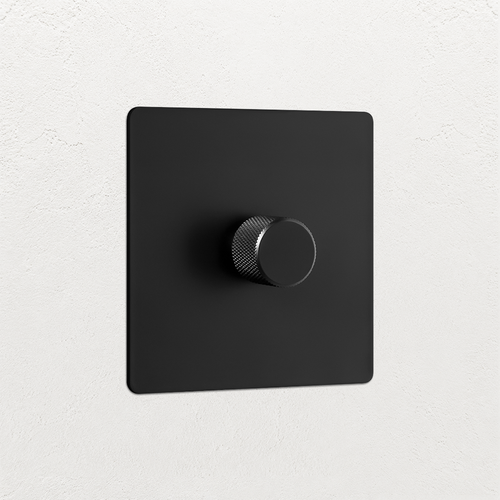

Repenic offers dedicated analogue controls, including its 0–10V Dimmer in Solid Brushed Brass and 0–10V Dimmer Module.
The module’s product information specifies separate D+ and D− control terminals, an on/off switching function and a minimum 25 mm UK back-box depth. It requires a compatible driver and dedicated control wiring, although it does not require a neutral connection at the wall control.
No-neutral operation does not mean no control wiring is needed. Existing mains-only switch wiring may therefore be insufficient for a particular retrofit.
These products should be assessed as dedicated analogue controls. They should not be described as Zigbee devices or as universal bypass accessories. Their role is to retain compatible level control, rather than automatically make every driver operate at full output.
The Repenic RD-DC1 installation manual identifies the 0–10V output and requires installation by a qualified electrician.
What Should Be Checked in a UK Installation?
Before changing a lighting-control arrangement, ask the electrician to assess the following:
- Interface identification: confirm the terminal functions from the driver and controller documentation. Wire colours alone are not sufficient.
- Control-circuit insulation: do not assume that a circuit is safe to touch simply because its nominal control signal is 0–10 V. Check its isolation classification and installation requirements.
- Cable routing and segregation: the control wiring and mains wiring must be installed using suitable insulation, separation and enclosures for the equipment and circuit arrangement.
- Switching capacity: check the driver load and inrush-current requirements, not just its steady-state wattage.
- Unused conductors: any redundant wiring must be dealt with using suitable terminals, insulation, identification and enclosure arrangements.
- Earthing and space: confirm protective-earthing requirements and sufficient back-box space for the complete installation.
Green-and-yellow identification is reserved for protective conductors; it must not be repurposed to mark dimming signal wires. The IET’s conductor-identification reference distinguishes protective conductors from line and neutral conductors.
Installation work should follow the applicable requirements of BS 7671 and the manufacturers’ instructions. Building regulations differ across the UK: the government’s Approved Document P provides guidance for electrical safety in dwellings in England.
When Should You Avoid Bypassing Dimming?
A general-purpose bypass is inappropriate where the driver’s behaviour is unknown or the control circuit forms part of a wider system that has not been assessed.
Obtain specialist advice before changing:
- Emergency or escape-route lighting.
- Shared control circuits serving several luminaires or zones.
- Systems with occupancy sensing, daylight control or building-management integration.
- Equipment using DALI, DMX, PWM or another interface instead of the assumed analogue input.
- Installations with unidentified wiring or missing equipment documentation.
If the reason for bypassing is flickering, poor dimming or unexpected switching, diagnose that fault first. Removing a control function does not repair a defective driver or wiring fault.
Frequently Asked Questions
Does 0 V Always Turn the Light Off?
No. Some drivers support dim-to-off; others stop at a minimum output and require separate switching. Check the exact driver specification. A light that appears off is not necessarily electrically isolated.
Will Joining the Dimming Wires Force Full Brightness?
No. Shorting a control input is different from leaving it open. On some interfaces, it requests minimum output or off; on others, it may be an unsupported condition. Do not join control wires unless the manufacturer’s instructions specifically require it.
Can I Replace the Controller with an On/Off Switch?
Potentially, if the driver supports the proposed fixed-output arrangement and the switch is suitably rated. An electrician must also confirm the available wiring, control-input treatment and required system functions.
Can I Keep Smart Control?
Yes, where a compatible smart controller provides the analogue interface and switching functions required by the driver. Check its actual output specification; app support or Zigbee connectivity alone does not establish compatibility.
Will a Bypass Affect the Warranty?
It may affect warranty coverage if it involves an unsupported modification. Check the manufacturer’s instructions and warranty terms before changing the installation.
Conclusion
Bypassing 0–10V dimming is a driver-specific decision, not a universal wire-disconnection procedure. Start with the existing controller’s settings, then check the driver’s documented behaviour and how the lighting will be switched off.
If you want simpler control while retaining dimming, a compatible dedicated 0–10V controller may be the better fit. For UK installations, have any wiring changes assessed and completed by a qualified electrician.
