Does 0-10V Dimming Require Special Wiring?

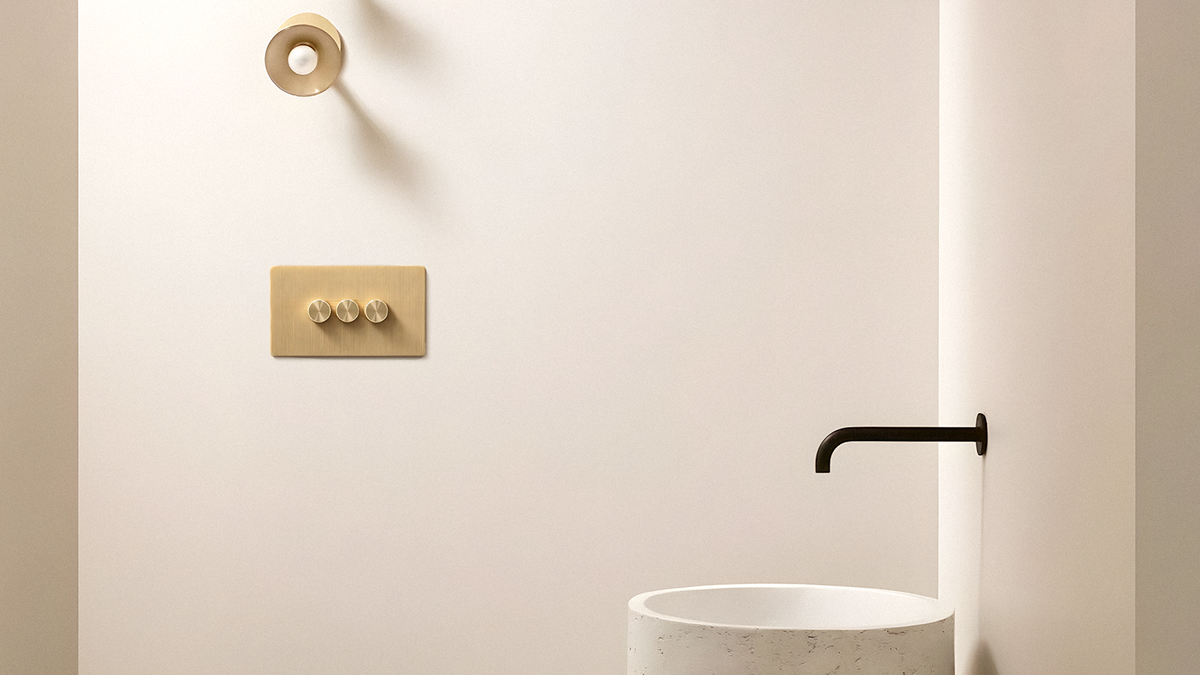

repenic dimmer switch

Yes. A 0–10V dimming system normally requires dedicated control wiring in addition to the mains supply for the lighting.

Unlike a standard phase-cut dimmer, which controls the power supplied to the light, 0–10V dimming uses a separate low-voltage signal to tell a compatible LED driver how bright the light should be. This usually means adding a pair of control wires between the dimmer and the driver.

The exact arrangement depends on the products being used, but the main point is simple: 0–10V dimming normally cannot rely on standard lighting wiring alone.

Table of Contents

What Wiring Does 0–10V Dimming Require?

A typical 0–10V system has two separate parts. The mains supply powers the LED driver or lighting fixture, while a dedicated pair of control wires carries the dimming signal, usually through D+ and D− connections.

Because the dimmer controls the signal rather than simply reducing the mains voltage, the LED driver must also be designed for 0–10V dimming. A standard non-dimmable driver cannot be made dimmable simply by adding a 0–10V wall control.

The control wiring also needs to be installed in accordance with the relevant electrical requirements and the instructions provided by the dimmer and driver manufacturers. Where mains and control wiring share an enclosure or cable route, appropriate segregation or insulation may be required.

For UK installations, fixed wiring should comply with BS 7671 and should be carried out by a competent electrician.

Can 0–10V Dimming Be Added to Existing Wiring?

It can, but the existing wiring is usually the first thing to check.

In a new installation, the D+ and D− control pair can be planned alongside the rest of the lighting circuit. In an existing property, conventional switch wiring may not include these additional control wires, which means new cabling may need to be installed between the wall control and the compatible LED driver.

This can make 0–10V dimming more involved as a retrofit, particularly once walls and ceilings have already been finished.

The neutral arrangement also depends on the dimmer itself. The LED driver will normally require a mains supply, including line and neutral, but a neutral does not necessarily need to be present at the wall control.

Before choosing 0–10V dimming for an existing room, it is worth checking three things: whether the driver supports 0–10V control, whether the required control pair is already available, and how difficult it would be to add if it is not.

When Does 0–10V Dimming Make Sense?

0–10V dimming is useful where the lighting system has been designed around compatible LED drivers and dedicated dimming control. It is commonly used in larger or more considered lighting installations, but it can also work well in residential projects where the wiring is planned from the beginning.

Compared with a standard phase-cut LED dimmer, the main difference is how brightness is controlled. A phase-cut dimmer changes the mains waveform supplied to a compatible lamp or driver and can often work with more conventional residential wiring. A 0–10V system keeps the lighting supply and dimming signal separate.

Neither approach is automatically better. The right choice depends on the lighting equipment, existing wiring and the requirements of the space.

Choosing a 0–10V Dimmer

Once you know the lighting uses a compatible 0–10V driver, the next step is choosing a dimmer that works with both the wiring and the space.

The Repenic 0–10V Dimmer connects through dedicated D+ and D− control terminals and does not require a neutral at the wall control, making it suitable for many UK installations where a neutral is not available at the switch.

Just as importantly, the wall control is still a visible part of the room. Repenic brings the same considered approach to finish and detail across its lighting controls, switches and sockets, helping the control sit naturally within the wider interior.

Conclusion

0–10V dimming does require more specialised wiring than a conventional wall dimmer because it uses a dedicated control pair in addition to the mains supply for the lighting.

For new projects, this can be planned from the beginning. For retrofit installations, the main question is whether the required control wiring is already available or can be added without significant disruption.

Choosing the right dimmer therefore starts with both the LED driver and the existing wiring, not the wall control alone.

FAQs

Can I use a regular dimmer with a 0–10V LED driver?

Not as a direct replacement for the 0–10V control input. A compatible control method is required, so always check the driver specification before choosing the dimmer.

Can existing light-switch wiring be used for 0–10V dimming?

Only if the required control connections are already available. Many conventional installations will need additional wiring for the D+ and D− control pair.

Does a 0–10V dimmer need a neutral at the switch?

Not always. It depends on the dimmer design. The Repenic 0–10V Dimmer, for example, does not require a neutral at the wall control.

Do I need a special LED driver for 0–10V dimming?

Yes. The lighting needs a driver with a compatible 0–10V control input.
