In a typical UK two-wire lighting circuit, a compatible dimmer connects to the permanent line and switched line without requiring a neutral at the switch. The CPC or earth remains a separate safety connection and is not included in the “two-wire” count.
The exact connections depend on the circuit and the dimmer’s terminal layout. Conductors should be identified using suitable test equipment rather than assumed from their colours, and the manufacturer’s wiring diagram should always be followed.
Table of Contents
- Is Your Circuit Suitable for a 2-Wire Dimmer?
- How Is a 2-Wire Dimmer Switch Installed?
- What Can Cause Problems After Installation?
- Which Repenic Dimmer Suits a 2-Wire Circuit?
- Conclusion
- FAQs
Is Your Circuit Suitable for a 2-Wire Dimmer?
Before replacing the switch, confirm that the circuit, lighting load and chosen dimmer are compatible.
| What to check | What to confirm |
|---|---|
| Circuit arrangement | Whether the light uses one-way, two-way or multi-point control |
| Dimmer type | Whether the dimmer is designed for no-neutral operation |
| Lamp and dimming method | Whether the lamps or drivers are dimmable and suit the dimming mode |
| Load range | Whether the total load and number of lamps are within the rating |
| Installation requirements | Whether a suitable CPC and sufficient back-box space are available |
An “LED compatible” label does not guarantee reliable performance with every LED lamp. Where available, check the manufacturer’s compatibility list for tested combinations.
How Is a 2-Wire Dimmer Switch Installed?
The following describes what a qualified electrician will normally do, so you can understand the process and discuss it with your installer. It is not intended as a DIY wiring guide.
1. Isolate and Verify the Circuit
The relevant lighting circuit is isolated at the consumer unit and then proved dead using appropriate test equipment.
Turning the light off at the wall switch is not sufficient because the conductors behind it may remain live.
2. Record and Identify the Connections
Before disconnecting the existing switch, the electrician records the conductor arrangement and identifies the permanent line, switched line and CPC by function.
Older and newer UK cable colours may appear in the same property, while conductors used as switched lines may have been re-identified. Wire colour alone cannot confirm a conductor’s function.
3. Check the Wiring Diagram
The identified conductors are compared with the diagram supplied for the exact dimmer. Terminal markings vary and may include L, COM, L1 or product-specific symbols.
“Two-wire” describes the dimmer’s power requirements, while “two-way” refers to control from two locations.
| Circuit arrangement | Typical control setup | Key difference |
|---|---|---|
| One-way | One dimmer | On/off and brightness control from one position |
| Two-way | Compatible two-way dimmer with a standard switch, or an approved matched system | A conventional setup normally provides dimming at one position and on/off control at both |
| Multi-point | Approved dimmer with matching companion or multi-point controls | The dimmer position and control wiring are product-specific |
For two-way or multi-point circuits, the electrician must confirm where the dimmer will be installed and whether a standard switch or matching control is required. Two ordinary dimmers should not be used together unless the combination is specifically approved.
4. Connect the Dimmer and Earth the Faceplate
The conductors are securely terminated without exposed copper outside the terminals. The CPC should be correctly sleeved and connected to the earth terminal where required.
A metal faceplate must be properly earthed. If no suitable CPC is present, the installation should be assessed before a metal accessory is fitted.
5. Refit and Test the Dimmer
The conductors are positioned carefully inside the back box without being trapped. The dimmer and faceplate should fit without being forced into the wall.
Once power is restored, the electrician checks the on/off operation, full dimming range and any unusual flickering, noise or heat.
What Can Cause Problems After Installation?
| Symptom | Possible cause | What to check |
|---|---|---|
| The light does not switch on | Incorrect connection, unsuitable lamp, insufficient load or circuit fault | Isolate the circuit and check the wiring, load and lamp compatibility |
| Flickering at low brightness | Minimum setting too low or poor lamp–dimmer compatibility | Check compatibility, load and dimming mode; raise the minimum brightness if supported |
| Flickering at full brightness or throughout the range | Incompatible lamp or driver, unsuitable dimming mode, incorrect wiring or a component fault | Check compatibility and arrange an inspection if the problem persists |
| Buzzing | Lamp-driver compatibility, unsuitable dimming mode or wiring problem | Check the approved lamp combinations and dimmer settings |
| Burning smell, sparking or excessive heat | Loose connection, overload or component fault | Switch off the circuit and arrange an electrical inspection |
Which Repenic Dimmer Suits a 2-Wire Circuit?
Repenic dimmer switches include standard and smart options for compatible 220–240V UK two-wire lighting circuits.
| Repenic option | Suitable use | Key requirements |
|---|---|---|

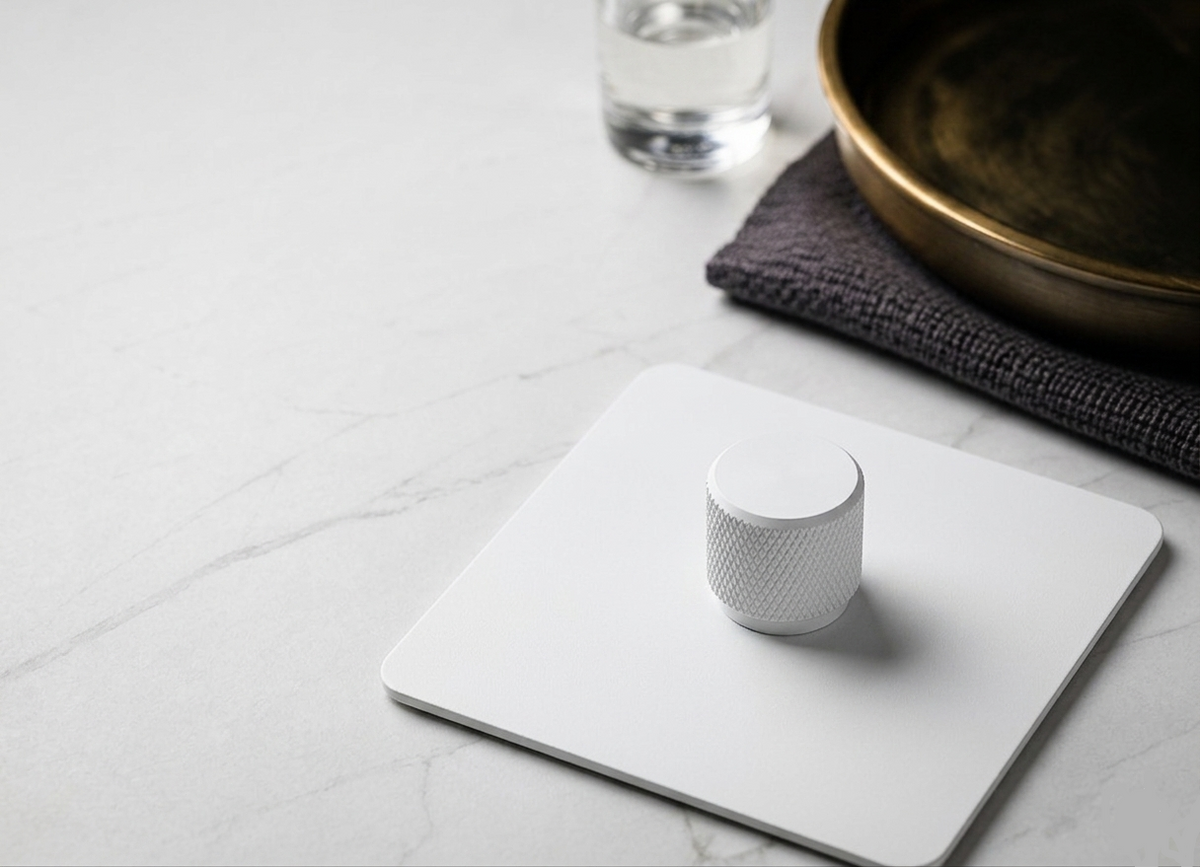

| Standard Dimmer Switch | Conventional rotary control, including approved two-way arrangements | No neutral required; compatible dimmable load; minimum 25mm back box |
| Zigbee Smart Dimmer Switch | Wall control with app control, scenes and automations | No neutral required; minimum 25mm back box; compatible Zigbee gateway needed for connected features |
Both options support selectable leading-edge and trailing-edge dimming for compatible dimmable LED, halogen and incandescent lamps. The permitted load depends on the dimming mode and the number of dimmers installed on the plate, so check the rating for the exact configuration.
Once the electrical setup is confirmed, choose from Brushed Brass, Brushed Stainless Steel, Matt White and Matt Black to coordinate the dimmer with the other details in the room.
Conclusion
A two-wire dimmer can work without a neutral at the switch, but it must suit the existing circuit, lamps and electrical load. Follow the diagram for the exact product and have the installation completed by a qualified electrician.
FAQs
Does a 2-Wire Dimmer Need a Neutral?
A dimmer designed for two-wire or no-neutral operation does not require a neutral at the switch. It still requires permanent line and switched line connections.
Does “2-Wire” Mean There Is No Earth?
No. The term refers to the two current-carrying connections and does not include the CPC or earth. A metal faceplate must be correctly earthed.
Can a 2-Wire Dimmer Be Used in a Two-Way Circuit?
Yes, if the dimmer supports two-way operation and is installed with the standard switch or matching control specified by the manufacturer.
