Installing a dimmer switch with 3 wires starts with identifying what each wire does and confirming that the dimmer is suitable for the existing lighting circuit. In a typical setup, the three connections are related to the line (live), load, and earth, although the exact arrangement can vary depending on the switch and circuit.
For UK homes, especially older properties, you should never rely on wire colour alone to identify a conductor. Before working on the circuit, switch off the relevant circuit at the consumer unit and use an appropriate voltage tester to confirm that it is dead.
If you are unsure about the existing wiring or the compatibility of the dimmer, consult a qualified electrician.
Table of Contents
- What Are the Three Wires on a Dimmer Switch?
- How Do You Install a Dimmer Switch with 3 Wires?
- What Bulbs Can You Use with a 3-Wire Dimmer?
- What Should You Check Before Installing a Dimmer in a UK Home?
- What If the Dimmer Does Not Work Properly?
- Conclusion
- FAQs
What Are the Three Wires on a Dimmer Switch?

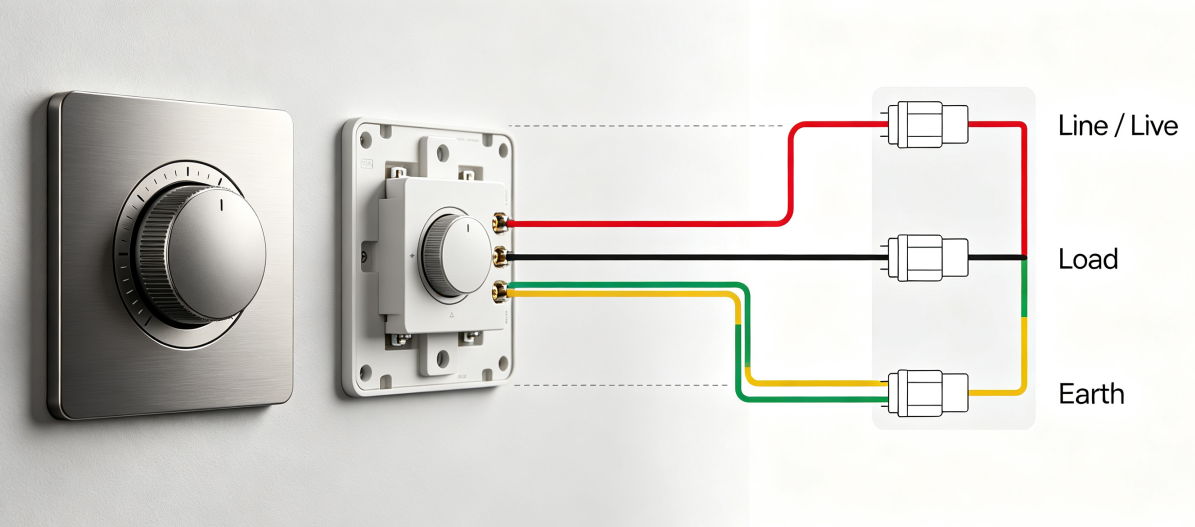

A typical three-wire arrangement includes:
- Line (Live): Supplies power from the electrical circuit to the dimmer.
- Load: Carries the controlled output from the dimmer to the light fitting.
- Earth: Provides a protective path in the event of an electrical fault.
The terminal names and wire arrangements can vary between products, so always follow the manufacturer's wiring diagram.
In UK installations, brown is commonly used for live conductors, while the protective conductor is identified by green-and-yellow sleeving. However, older installations may contain different or repurposed wiring. For this reason, wire colour should not be treated as the only method of identification.
If you are replacing an existing switch, take a clear photo of the original wiring and label the conductors before disconnecting them.
How Do You Install a Dimmer Switch with 3 Wires?
Once you have confirmed that the dimmer is suitable for the circuit, the general installation process is as follows.
1. Turn off the power
Switch off the appropriate circuit at the consumer unit. Use a suitable voltage tester to confirm that there is no voltage before handling the wiring.Do not rely on the wall switch being in the "off" position as proof that the circuit is safe.
2. Remove the existing switch
Carefully remove the faceplate and expose the wiring. Before disconnecting the old switch, record the original connections so you have a reference.
3. Identify the connections
Identify the line, load and earth conductors according to the existing circuit and the manufacturer's wiring diagram.
4. Connect the dimmer
Connect each conductor to the appropriate terminal on the dimmer. Make sure all connections are secure and correctly positioned.Do not force excessive wiring into the back box, as this can put unnecessary pressure on the terminals and conductors.
5. Secure the dimmer
Carefully position the dimmer in the back box and secure it according to the manufacturer's instructions. Make sure the wires are not trapped or excessively bent.
6. Restore power and test
Restore power and test the switch. Check both normal on/off operation and the dimming range.If the light flickers, buzzes, fails to turn on or behaves unexpectedly, switch the circuit off again and check the wiring and lamp compatibility.
What Bulbs Can You Use with a 3-Wire Dimmer?
A dimmer is not automatically compatible with every type of lamp. The dimmer and the light source must be compatible.
Depending on the specific dimmer, compatible loads may include:
| Light Source | Compatibility |
|---|---|
| Incandescent | Generally suitable |
| Halogen | Generally suitable |
| Dimmable LED | Suitable when the LED is rated for dimming |
| Dimmable CFL | Depends on the dimmer and lamp specifications |
| Non-dimmable LED | Not suitable |
| Non-dimmable CFL | Not suitable |
| Smart bulb | Generally not suitable with a wall dimmer |
LED bulbs require particular attention. Even when an LED is labelled "dimmable", its performance can vary depending on the dimmer, minimum load and dimming technology.
What Should You Check Before Installing a Dimmer in a UK Home?
There are several practical points to check before replacing a standard light switch.
Does the dimmer require a neutral wire?
Not all dimmers require a neutral wire. This can be useful in older UK homes where a neutral may not be present at the wall switch position.
For example, Repenic Zigbee Dimmer Switches are designed to operate without a neutral wire. The current specifications also support dimmable LED, halogen, incandescent and dimmable CFL loads, with leading-edge and trailing-edge dimming options.
Is the back box deep enough?
Back box depth can be an important consideration in older UK properties. Check the manufacturer's requirements before installation and make sure there is enough space for the dimmer and its wiring.
For example, Repenic Zigbee Dimmer Switches are designed to fit a standard 25mm UK back box, making them a practical choice for retrofit projects where wall space can be limited.
What is the dimmer's load rating?
Check the dimmer's rated load and make sure it is suitable for the total lighting load and lamp type.
Never assume that every dimmer has the same load capacity.
Is it a two-way lighting circuit?
If the same light is controlled from two locations, the circuit is different from a simple single-location installation.
Before replacing the switch, confirm that the selected dimmer supports the required two-way or multi-way configuration.
What If the Dimmer Does Not Work Properly?
If the dimmer does not work after installation, check the most common causes first.
-
The light does not turn on:
Check the power supply and confirm that the line and load connections match the manufacturer's wiring diagram. -
The light flickers:
Check that the lamp is dimmable and compatible with the dimmer. LED compatibility is particularly important. -
The dimmer or lamp buzzes:
Check the lamp and dimmer combination and confirm that the appropriate dimming mode is being used if the product provides more than one option. -
The light does not dim smoothly:
Check the minimum load and the specifications of the lamp and dimmer. -
A smart dimmer will not connect:
For Zigbee dimmers, check the Zigbee gateway or coordinator and confirm that the device is supported by the selected smart-home platform.
If the problem appears to involve the fixed wiring rather than the dimmer itself, stop troubleshooting the live circuit and seek professional help.
Conclusion
Installing a dimmer switch with 3 wires is not simply a matter of connecting three conductors. The key is to identify the circuit correctly, match the dimmer to the wiring and use compatible lamps.
For UK homes, check whether the dimmer requires a neutral wire, confirm that the back box is deep enough, determine whether the circuit is single-way or two-way, and make sure the chosen lamps are suitable for dimming.
With the right product and correct installation, a dimmer can provide more flexible lighting control without requiring major changes to an existing lighting system. Above all, safe wiring and product compatibility should always come before convenience.
FAQs
Can I install a dimmer switch with 3 wires myself?
It depends on your electrical knowledge and the complexity of the circuit. A straightforward replacement may be possible for someone who is competent to carry out the work safely. If you are unsure about the wiring or circuit configuration, use a qualified electrician.
Does a 3-wire dimmer need a neutral wire?
Not necessarily. The number of wires involved does not determine whether a neutral is required. Some dimmers are specifically designed to operate without a neutral connection.
Can I use LED bulbs with a 3-wire dimmer?
Yes, provided the LED bulbs are specifically designed for dimming and are compatible with the dimmer. Always check the specifications of both products.
Can I use a dimmer with smart bulbs?
Generally, no. Smart bulbs contain their own electronic control and normally need continuous power. A conventional wall dimmer can interfere with their operation.
