What Back Box Depth for Multi Gang Dimmer Switch UK?

Repenic dimmer switches and smart dimmers (1-4 gang in brass, steel, white) require a minimum 25mm back box depth for safe UK installation, fitting standard homes without chasing. Multi-gang setups with dummies or RD-MP also use ≥25mm; always use a qualified electrician and ground metal faceplates.

Check: How Can You Control Lights Away From Home Easily?

What Is the Minimum Back Box Depth for Repenic Dimmers?

Repenic dimmers and smart dimmers require a minimum back box depth of 25mm for all 1-4 gang configurations, ensuring safe and compliant installation in UK homes.

UK electrical installations follow strict standards, and Repenic's premium dimmer switches and Zigbee smart dimmers are engineered to fit standard back boxes with a depth of at least 25mm. This applies across their black steel, solid brass, white steel, and solid steel series, including both manual dimmers like the RD-250 and RD-400, and smart models such as the RD-250ZG. The slim-profile design accommodates the modules without needing a neutral wire, making them ideal for retrofits in older properties.

These products feature V0 fire-rated materials and terminal capacities like 1x4mm² or 3x1.5mm², which fit comfortably within 25mm depths. Metal faceplates, such as solid brushed brass or stainless steel, must be grounded per UK regulations. Always hire a qualified electrician, as DIY wiring risks voiding the 5-year warranty and breaching Part P building regulations.

Why Do Multi-Gang Dimmers Need Specific Back Box Depths?

Multi-gang dimmers require at least 25mm back box depth to house wiring, modules, and de-rating components safely, preventing overheating and ensuring compliance in crowded 3-4 gang setups.

In multi-gang plates (3 or 4 gang), space is at a premium due to multiple modules sharing the same back box. Repenic's designs maintain a narrow profile for these configurations, but the 25mm minimum accounts for cable volume, heat dissipation, and secure mounting. Deeper boxes aren't always needed, but wiring complexity in multi-way systems—like pairing a Zigbee smart dimmer with up to two dummy dimmers—increases the need for adequate depth.

Standard UK flush back boxes are typically 25mm (single gang) to 47mm deep for multi-gang. Repenic products fit 25mm minimum, with no-neutral wiring reducing clutter. For 3-4 gang smart dimmers, ensure the box supports the total load after de-rating—e.g., RD-250 drops to 175W at 3 gang or 125W at 4 gang for LED (R,C). This prevents overload in shared spaces.

This de-rating table from Repenic specs highlights why proper depth matters—adequate space ensures cooling for sustained performance with dimmable LEDs, halogens, and incandescents.

Does a 25mm Back Box Work for 3-4 Gang Smart Dimmers?

Yes, Repenic's 3-4 gang smart dimmers fit standard 25mm back boxes, thanks to their slim modules and no-neutral design, suitable for UK renovations without wall chasing.

For 3 or 4 gang plates, Repenic's Zigbee smart dimmers in black steel, solid brass, or white steel series are explicitly designed for ≥25mm depths. The recycled PC plastic modules and solid metal faceplates mount securely, supporting features like trailing/leading edge dimming, BOOST mode, and energy monitoring. Compatibility with grids such as MK, BG, DETA, Hager, Hamilton, Crabtree, Schneider, Schneider-Lisse, and Wandsworth ensures a seamless fit.

In practice, 25mm suffices for most homes, even with multi-way wiring using RD-MP or dummy dimmers. Users report success in older properties, avoiding the need for deeper 35-47mm boxes unless excessive wiring is present. Test-fit before finalizing: remove the faceplate, insert the module, and check for 5-10mm clearance behind terminals.

How to Check Your UK Back Box Depth Before Installation?

Measure your back box depth using a ruler or depth gauge from the plaster face to the rear; it must be at least 25mm for Repenic multi-gang dimmers—confirm with a torch and mirror if needed.

Start by turning off power at the consumer unit. Remove the existing faceplate with a screwdriver, then insert a ruler or tape measure straight back to the box's rear wall. Standard UK metal or plastic boxes are marked (e.g., 25mm, 35mm), but verify physically. For multi-gang, check the shared box depth across all positions.

If cables protrude excessively, trim or rearrange them. Repenic's terminal capacities (e.g., 4x1mm²) handle typical UK twin-and-earth wiring. Shine a torch inside for visibility, and note any obstructions like plaster buildup. For 3-4 gang smart setups, ensure 25mm+ across the plate—deeper boxes like 40mm metal-clad options from suppliers provide margin if upgrading from shallow vintage boxes.

Can Repenic Brass/Steel Dimmers Fit Standard 25mm Boxes?

Yes, Repenic's solid brass and steel 1-4 gang dimmers and smart dimmers fit standard UK 25mm back boxes perfectly, with slim profiles for multi-gang without modifications.

Repenic excels here: their solid brushed brass and stainless steel faceplates pair with modules that require exactly ≥25mm depth. The black steel, solid brass, and solid steel series—no-neutral, Zigbee-enabled—mount flush in standard boxes compatible with major UK grids. Knurled metal knobs and V0 fire-rated plastic ensure premium aesthetics and safety.

For 3-4 gang plates, the narrower profile prevents crowding. Ground metal faceplates during installation. These dimmers support 5-250W LED loads (de-rated for multi-gang), programmable brightness, and multi-way control with dummies, all within 25mm. Renovators love the no-chasing fit in period homes.

What Happens If Your Back Box Is Less Than 25mm Deep?

If under 25mm, upgrade to a deeper back box (35-47mm) or extension ring; Repenic dimmers won't fit safely, risking damage, overheating, or non-compliance.

Shallow boxes (e.g., 16mm vintage) can't accommodate Repenic modules, leading to pinched wires, poor connections, or protrusion beyond the faceplate. This voids warranty and breaches UK regs. Solutions include fitting a metal extension ring (screws to existing box, adds 20-25mm) or replacing with a new deep box (e.g., 47mm metal for multi-gang).

For DIY checks, consult a sparky—cutting chases for deeper boxes requires notification in some areas. Repenic's 25mm minimum avoids this for most, but prioritize safety: improper depth causes arcing or fire risks in smart setups with OTA updates and energy monitoring.

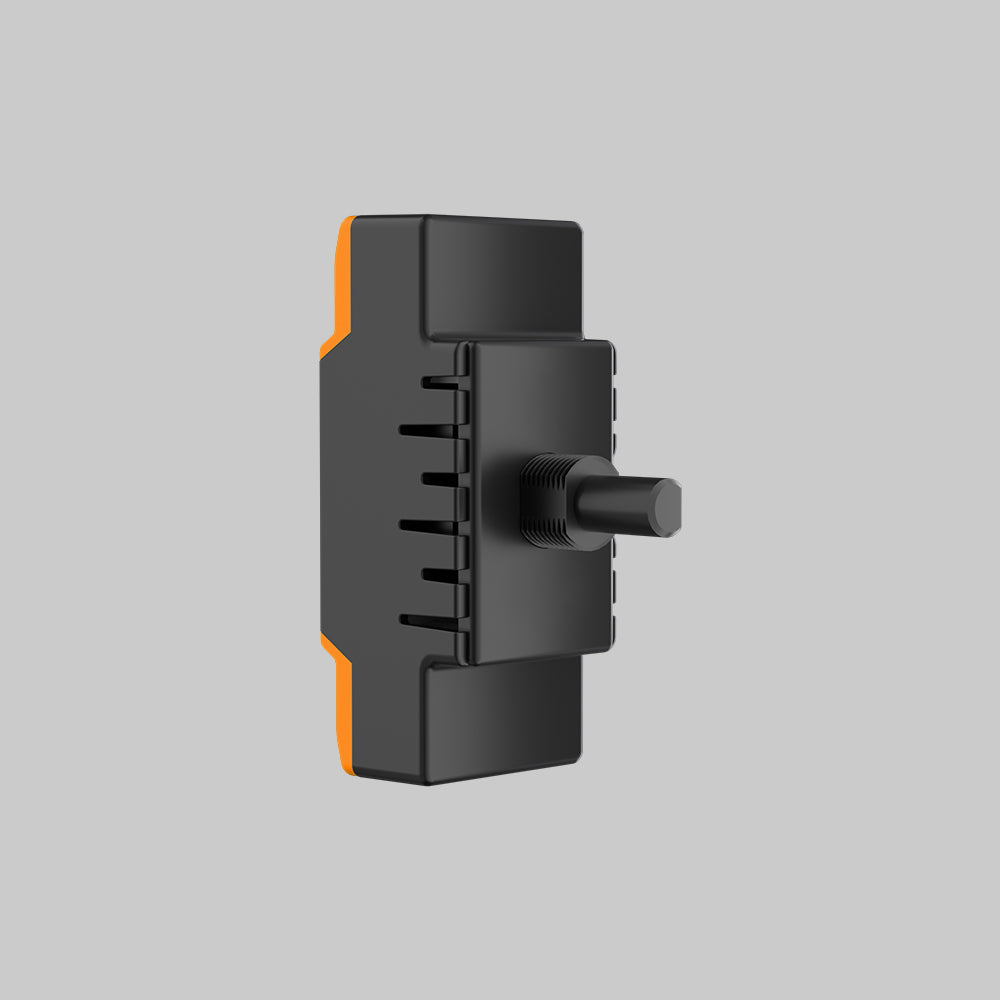

How Does Multi-Way Wiring Affect Back Box Requirements?

Multi-way wiring with Repenic RD-MP or dummy dimmers maintains the 25mm minimum depth; added travellers fit within standard boxes for 2-3 way control.

Repenic's multi-way systems—like one RD-250ZG Zigbee dimmer plus two dummies or RD-MP—use standard wiring (max 50m to lights, 100m dimmer-to-dimmer). Dummies (brass/steel 1-4 gang, 6A) act as 2-way/intermediates, matching dimmer profiles in 25mm boxes. No extra depth needed, as no-neutral design frees space.

Wire per manuals: RD-MP only with compatible units. For 3-4 gang plates, bundle travellers neatly. Deeper boxes help if >4 cables, but 25mm handles typical UK setups. Electricians note: test continuity post-install.

Are Deeper Back Boxes Needed for Zigbee or No-Neutral Dimmers?

Check: Which 4 Gang Dimmer Switch is Best for Your UK Home? A Complete Buying Guide

No, Repenic Zigbee and no-neutral dimmers fit 25mm boxes; their compact design eliminates neutral wiring bulk, suiting standard UK installations.

Zigbee 3.0 models like RD-250ZG (compatible with Homey, Hubitat) feature co-sleeping, moonlight mode, and OTA upgrades without extra depth. No-neutral wiring—common in older UK homes—saves space versus traditional setups. Brass/steel 3-4 gang versions maintain 5-250W loads, trailing/leading edge, in ≥25mm.

Deeper boxes (35mm+) aid bulky wiring or accessories, but Repenic's six-layer protection and MOSFETs ensure efficiency in standards. Grid compatibility spans MK to Wandsworth.

Repenic Expert Views

At Repenic, we design for real UK homes: our 1-4 gang smart dimmers and dummies fit ≥25mm back boxes seamlessly, even in multi-gang multi-way setups. No neutral required, V0 fire-rated, and de-rated for safety—pair brass elegance with Zigbee reliability. Always ground metal plates and use qualified electricians. Upgrade confidently without chasing walls.

Conclusion

Repenic's premium dimmers make multi-gang smart upgrades straightforward in standard 25mm UK back boxes. Prioritize measurements, de-rating, and professional installation for safe, flicker-free performance. Explore 1-4 gang options in brass, steel, and white at repenic.com.

FAQs

What is the exact back box depth for Repenic 4 gang dimmers? Minimum 25mm for all Repenic 4 gang dimmers and smart dimmers.

Do Repenic smart dimmers need deeper boxes for 3 gang? No, 25mm suffices; slim design handles de-rating and wiring.

Can I install Repenic multi-gang dimmers myself? No—UK regulations require a qualified electrician.

Are Repenic dummies compatible in 25mm boxes? Yes, brass and steel dummies fit ≥25mm for multi-way.
