Mastering multi-location control starts with understanding how a 2 way light switch and intermediate light switch work together. These setups let you manage lights from hallways, stairs, or large rooms without backtracking, solving common home lighting frustrations.
check:Light switch
What Is a 2 Way Light Switch?

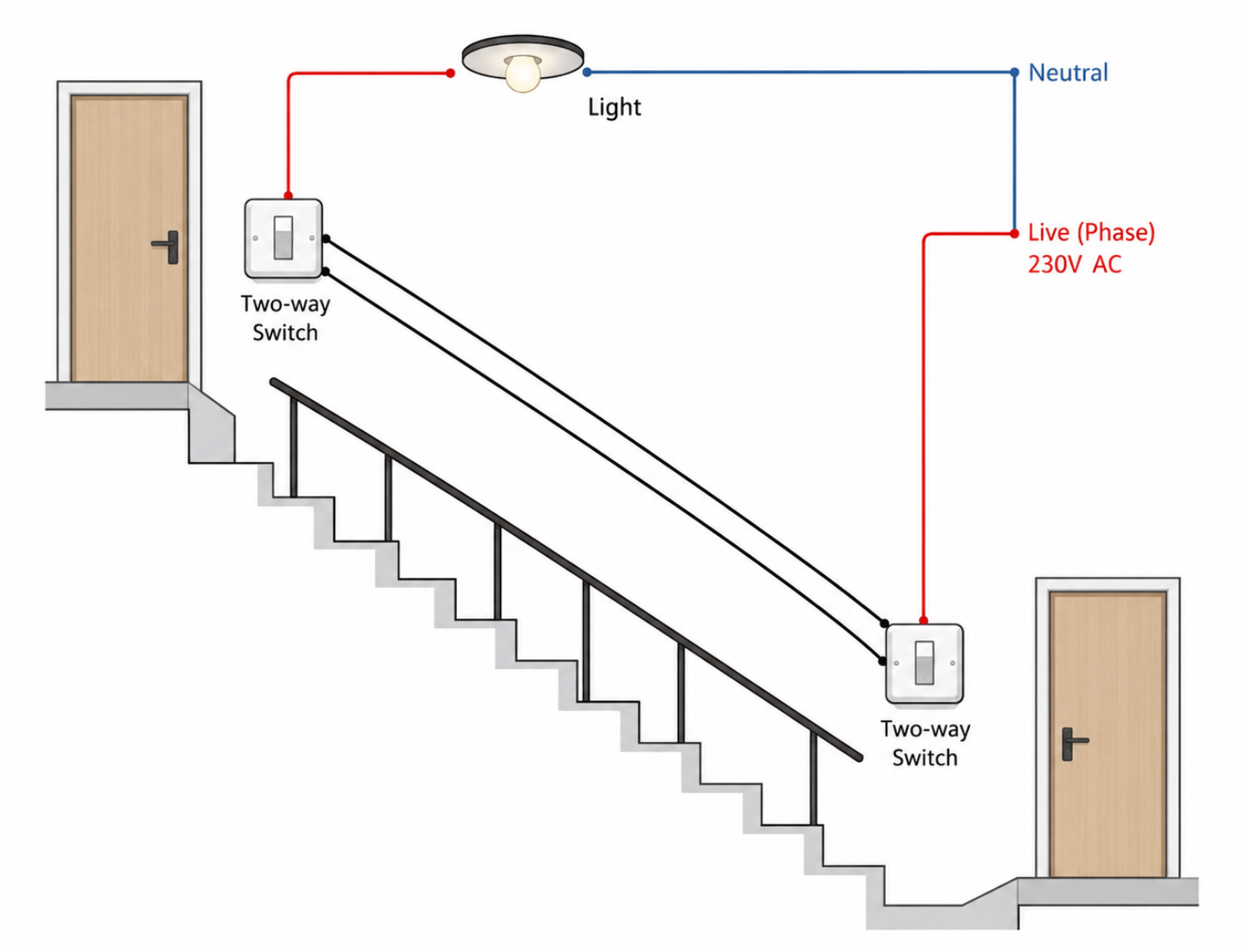

A 2 way light switch controls one light from two spots, like the top and bottom of stairs. It uses three terminals—common, L1, and L2—to toggle power between traveler wires, flipping the circuit on or off regardless of the other switch's position. This basic two way switching setup is ideal for bedrooms with door and bedside controls or garages with entry points.
In practice, wiring a 2 way light switch involves connecting the live feed to one switch's common terminal, linking L1 and L2 via strappers, and running power to the light from the second common. UK standards require 1mm² twin and earth cable for lighting circuits, ensuring safe operation up to 700W LED loads. Homeowners love this for its simplicity—no neutral needed in traditional installs.
Intermediate Light Switch Explained
An intermediate light switch handles control from three or more locations, placed between two 2 way switches. With four terminals—two inputs and two outputs—it crosses over traveler wires, rerouting current without direct power handling. Think long hallways where switches at each end and middle let anyone toggle the light effortlessly.
It's worth mentioning that 2-way switches and intermediate switches can also be used as 1-way switches, although the cost will be higher.
2 Way vs Intermediate: Key Differences
This table highlights why choosing between 2 way switching and intermediate switching depends on your needs—two spots mean 2 way, more require intermediates.
How to Wire 2 Way Switching
First, turn off the power. Then, refer to the diagram below to select the appropriate wiring for your system. Please note that this installation should be performed by a professional electrician.
Setting Up Intermediate Switch Circuits
First, turn off the power. Then, refer to the diagram below to select the appropriate wiring for your system. Please note that this installation should be performed by a professional electrician.
Are dimmers the same as the switches?
In addition to switches, dimmers can also be divided into 1-way dimmers, 2-way dimmers and multi-way dimmers (similar in concept to intermediate switches).
The installation of 1-way and 2-way dimmers is generally similar to that of their switch equivalents. For example, if your home already has two 2-way switches controlling a staircase light — one upstairs and one downstairs — you can usually replace either of the existing 2-way switches with a 2-way dimmer without any additional wiring. The wiring arrangement is typically similar to that of a standard 2-way switch.
However, there is one important difference: two conventional 2-way dimmers cannot normally be connected together to control the same lighting circuit. This is one of the key differences between a 2-way dimmer and a standard 2-way switch.
Multi-way dimmers, on the other hand, are specifically designed to work together. Two or more compatible multi-way dimmers can be connected to create a multi-position dimming system, allowing you to switch the lights on and off and adjust the brightness from each control position.
