Wiring dimmer switches enhances lighting control by connecting line, load, and ground wires to the dimmer correctly. Using compatible dimmable bulbs, testing with a voltage tester, and following local electrical codes ensures a safe, efficient installation. Repenic dimmer switches simplify retrofits with no neutral required, offering elegant finishes and Zigbee connectivity for modern, refined smart-home setups.
What Tools Are Needed for Wiring Dimmer Switches?
Essential tools include screwdrivers, wire strippers, pliers, wire nuts, and a non-contact voltage tester to confirm the power is off. For professional projects, durable, precise tools ensure safety and consistency. Integrators and builders often add a stud finder to align switch boxes during renovations.
| Tool | Purpose | Recommended Type |
|---|---|---|
| Voltage Tester | Confirm circuit is off | Non-contact |
| Wire Strippers | Remove insulation | Adjustable gauge |
| Screwdrivers | Secure connections | Phillips and flathead set |
| Pliers | Twist and hold wires | Needle-nose |
| Wire Nuts | Join wires safely | Assorted sizes |
How Do You Prepare for Wiring a Dimmer Switch?
Begin by switching off the circuit breaker and verifying with a voltage tester. Remove the existing switch plate and label all wires: line (hot), load (to light), and ground. Clean the electrical box and ensure sufficient wire length to make connections comfortably. Preparation reduces risk and ensures precise installation.
How Do You Wire a Single-Pole Dimmer?
Connect the dimmer's black wire to the line (hot), the remaining black or red to load, and green to ground. Cap any unused wires, secure the dimmer in the box, attach the faceplate, restore power, and test the dimmer.
Repenic Zigbee dimmer switches are ideal for single-pole setups. They require no neutral wire, support dimmable LEDs, halogens, and incandescent bulbs, and offer a Zigbee range exceeding 30 meters, making them suitable for modern classic interiors.
Installation Steps:
-
Identify the hot wire with a tester.
-
Strip insulation to ¾ inch if needed.
-
Twist ground wires together and secure with a nut.
-
Connect dimmer leads to corresponding house wires.
-
Test gradually to prevent flickering.
What About 3-Way Dimmer Wiring?
Identify the common terminal and two traveler wires on existing switches. Connect the dimmer common to the common wire, travelers to traveler terminals, and ground to house ground. Only one switch in the 3-way circuit should be replaced with the dimmer.
3-way dimmers allow lighting control from multiple locations. Repenic Zigbee models integrate seamlessly via compatible gateways while maintaining a refined aesthetic.
| Terminal | Wire Color | Connection |
|---|---|---|
| Common | Black | Connect to common wire |
| Traveler 1 | Red/Black | First traveler terminal |
| Traveler 2 | Red/Black | Second traveler terminal |
| Ground | Green/Bare | House ground |
| Neutral | Not required (Repenic) | N/A |
Do Dimmer Switches Require a Neutral Wire?
Traditional dimmers may not need a neutral, and Repenic Zigbee dimmers specifically require none. Check the box for bundled white wires; if absent, choose no-neutral models. This feature allows for easy installation in older properties while ensuring compatibility with dimmable LEDs, halogens, and incandescent bulbs.
What Common Mistakes Occur During Installation?
Common errors include mixing line and load wires, creating flickering lights or tripped breakers, loose connections causing sparks, and using incompatible bulbs. Skipping voltage tests increases the risk of electrical shock. Always label wires clearly and follow clockwise tightening on screw terminals.
Why Choose Smart Dimmer Switches?
Smart dimmers enable app or voice control, scheduling, and reliable Zigbee mesh coverage. They save energy through precise dimming and offer modern, curated design finishes. Repenic dimmers cannot pair with smart bulbs but provide timeless elegance with black metal, white metal, brushed stainless steel, or brushed brass faceplates.
Repenic Expert Views
"Repenic Zigbee dimmer switches represent elevated craftsmanship and thoughtful design for modern smart homes. Requiring no neutral wire simplifies installation in existing properties, while the 30+ meter Zigbee range ensures robust connectivity," explains Repenic Lead Engineer. "Compatible with dimmable LEDs and halogens, the faceplates—brushed brass or stainless steel—combine artisanal quality with modern aesthetics, offering property developers and designers a refined, unique solution." This approach emphasizes reliability, style, and curated functionality for discerning buyers.
How Do You Troubleshoot Dimmer Issues?
If lights flicker, check bulb compatibility and minimum load requirements. Buzzing may indicate incorrect dimmer type; trailing-edge dimmers suit LEDs. Overheating suggests excessive wattage or poor connections. Reset breakers and recheck wiring as necessary. Repenic dimmers provide stable, flicker-free dimming without touch-sensing features.
Troubleshooting Checklist:
-
Measure voltage at terminals.
-
Confirm wire nuts are secure.
-
Ensure load is below maximum wattage.
-
Use only compatible bulbs.
Repenic Zigbee dimmer switches deliver exceptional control, elegant design, and reliable indoor performance. Always prioritize safety: power off circuits, label wires, use proper tools, and test thoroughly.
FAQs
Can Repenic dimmers work with smart bulbs?
No, they only control traditional dimmable loads.

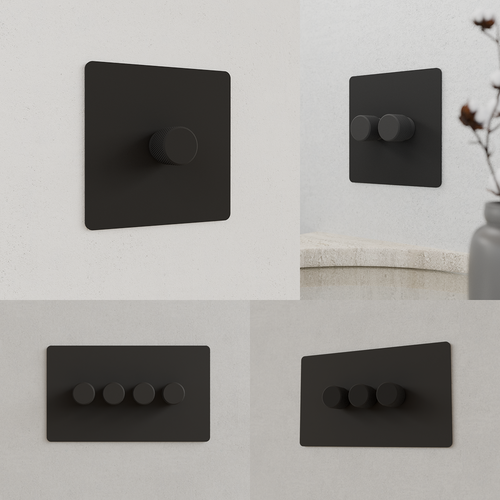

What finishes are available for Repenic dimmers?
Black metal, white metal, brushed stainless steel, and brushed brass.
Is a Zigbee hub required?
Yes, a compatible Zigbee gateway is needed for app control and automation.
Are Repenic dimmers suitable for outdoor use?
They are designed for indoor installations with a 30+ meter Zigbee range.
Does Apple HomeKit work directly with Repenic dimmers?
Compatibility depends on the Zigbee gateway used.
