Yes, you can put a dimmer on a 2 way switch by replacing one switch with a 2-way dimmer (e.g., Repenic RD-250/RD-400) wired to COM (live), L1/L2 (travellers), while keeping the other as a standard switch. For full dimming from both ends, use Repenic RD-MP multiway or RD-250ZG Zigbee with dummies—no neutral needed, fits UK 25mm boxes, supports 5-250W LEDs.
Check: how does a 2-way dimmer switch work
What Is a 2 Way Switch and How Does It Work?
A 2-way switch allows control of a light from two locations, using three terminals: COM (common), L1, and L2 (strappers or travellers). Power flows through COM on one switch, travellers connect the switches, and COM on the second switch feeds the light.
In a standard 2-way setup common in UK homes, the live feed (brown wire, 230VAC 50Hz) connects to the COM terminal of the first switch. L1 and L2 terminals on both switches link via 3-core and earth cable, creating two traveller paths. The second switch's COM connects to the light, with neutral and earth completing the circuit at the fitting. Flipping either switch toggles the travellers, directing power to or blocking it from the light. This logic ensures on/off control from either end without rewiring.

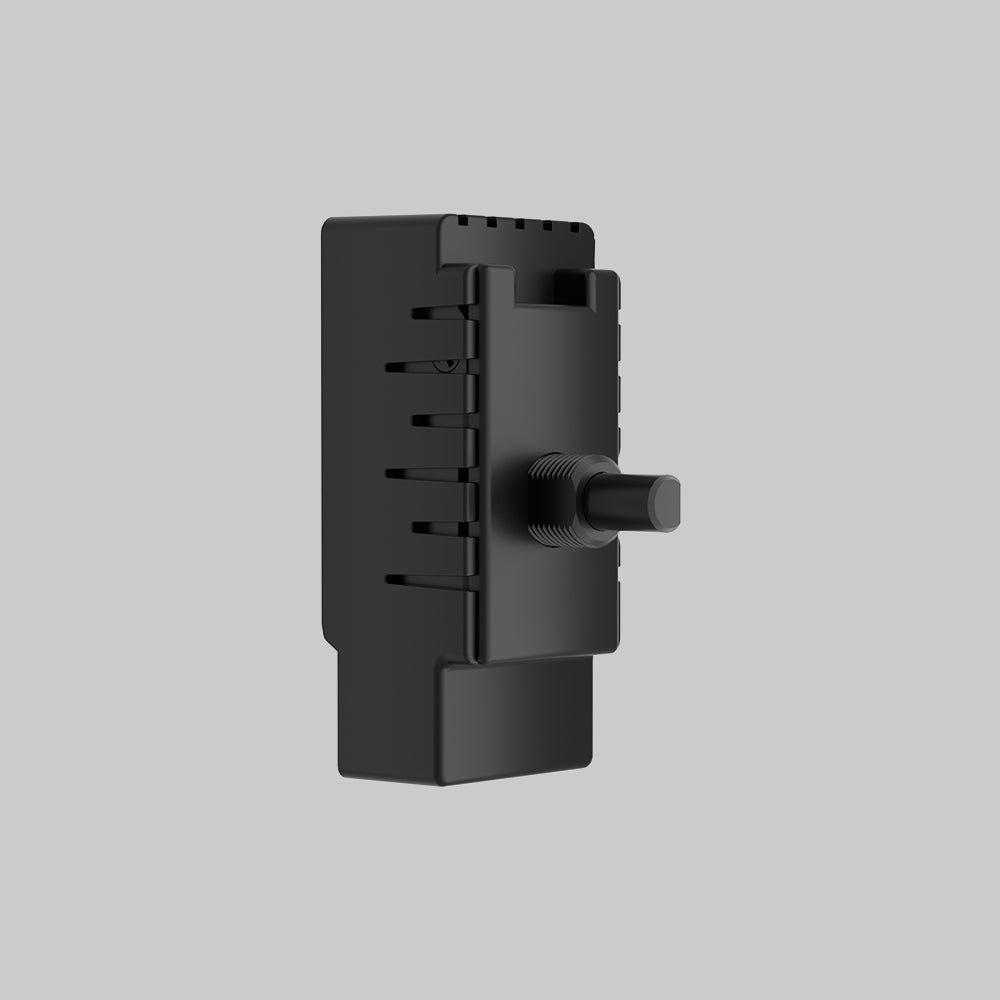

Repenic 2-way dimmers like the RD-250 and RD-400 preserve this exact wiring while adding dimming. They fit standard UK back boxes (minimum 25mm depth) and support LED, halogen, and incandescent loads from 5-250W (RD-250) or 5-400W (RD-400). Metal faceplates must be earthed, and installation requires a qualified electrician per UK regulations.
Can You Install a Dimmer on a 2 Way Switch Circuit?
Yes, install a 2-way dimmer on one switch position in a 2-way circuit, wiring live to COM, travellers to L1/L2, and switched live from the other COM to the light. The second switch remains standard; full dimming from both needs multiway solutions.
Traditional dimmers support 2-way operation but limit you to one dimmer per circuit—the other must be a plain switch or dummy. This works because the dimmer handles power regulation via trailing or leading edge technology, while the companion switch only toggles the circuit on/off. Repenic's RD-250 (5-250W LED R,C / 5-100W R,L) and RD-400 (5-400W) are designed for this, with programmable trailing edge (default) or leading edge modes ideal for dimmable LEDs without buzzing or flickering.
For renovations, Repenic dimmers require no neutral wire, fitting older UK properties with 25mm back boxes. They auto-adjust max brightness to prevent flicker and include BOOST mode for low-level lighting. Always de-rate for multi-gang setups: for RD-250, 1-gang is 250W, dropping to 75W at 5-gang (R,C loads).
What Does COM, L1, and L2 Mean on a 2 Way Dimmer?
COM is the common terminal for live input (first switch) or switched output (second switch). L1 and L2 are traveller terminals linking switches via strappers; their logic swaps power paths to toggle the light on/off or dim levels.
The "common" and "L1/L2" logic is core to 2-way dimming. COM receives mains live (brown wire) on the dimmer-end switch or outputs to the light on the companion end. L1 and L2 connect identically between switches—L1 to L1, L2 to L2—using twin brown or 3-core cable. In the on position, COM connects internally to one traveller (e.g., L1), sending power through; off swaps to L2, blocking it.
Repenic dimmers use this precisely: wire 230VAC live to COM, strappers to L1/L2 (terminal capacity: 1x4mm² / 1x2.5mm² / 3x1.5mm² / 4x1mm²). For LEDs, trailing edge (programmable) cuts the sine wave end for smooth dimming. This matches UK grids like MK, BG, DETA, ensuring compatibility without humming.
| Terminal | Function in 2-Way Dimmer | Typical Wiring (UK Colours) |
|---|---|---|
| COM | Live in / Switched out | Brown (permanent live) |
| L1 | Traveller 1 | Brown (strappers from other switch) |
| L2 | Traveller 2 | Brown (strappers from other switch) |
| Earth | Ground (metal plates) | Green/Yellow |
How Do You Wire a 2 Way Dimmer Switch Step-by-Step?
1. Isolate power. 2. Connect live to COM on dimmer. 3. Link L1/L2 to companion switch. 4. Run COM from companion to light. 5. Earth metal parts. Test via qualified electrician.
Step 1: Turn off power at the consumer unit and verify with a tester. Step 2: Remove old switches, noting wires—live (brown) to COM, two strappers to L1/L2. Step 3: Fit Repenic RD-250/RD-400 into 25mm box; insert live into COM, strappers into L1/L2. Step 4: At companion switch, connect incoming strappers to its L1/L2, outgoing to light via COM. Step 5: Secure earth to green/yellow terminal and metal faceplate. Step 6: Re-energise and test dimming range (programmable 1-50% min brightness).
Repenic dimmers auto-return to previous brightness on power-on and support soft-start for bulb protection. For Zigbee RD-250ZG, same wiring but no 2-way/intermediate companions—use with RD-MP multiway.
Why Can't You Use Two Standard Dimmers in a 2 Way Setup?
Standard dimmers conflict in 2-way circuits as both regulate voltage simultaneously, causing flicker, buzzing, or failure. Limit to one dimmer with a standard switch; multi-dimmer needs compatible multiway tech.
Two dimmers create phase clashes—each modulates the AC waveform (trailing/leading edge), desynchronising signals over travellers. This overloads electronics, especially LEDs. Repenic solves this with RD-MP multiway dimmers (up to 5 units, total ≥15W load, max 50m to light/100m dimmer-to-dimmer) or RD-250ZG Zigbee (max 1 smart + 2 multiway). Dummy dimmers (brass/steel, 6A) act as mechanical 2-way/intermediates, preserving aesthetics.
What Are Repenic Multiway Dimmers and How Do They Enable True 2-Way Dimming?
Repenic RD-MP multiway dimmers allow multiple dimmers (up to 5) on one circuit for true 2-way dimming from all locations, using digital sync over travellers. Pair with RD-250ZG for smart control; no standard switches.
Unlike standard limits, Repenic RD-MP enables full dimming from every switch in 2/3/4-way setups. Wire as 2-way: COM/L1/L2 logic, but internals communicate levels. Programmable min brightness, auto-adjust max. RD-250ZG adds Zigbee 3.0, energy monitoring, moonlight/sunrise modes—no neutral needed. Compatible grids: MK, BG, etc. Dummy dimmers match rotary design for multi-gang uniformity.
Repenic Expert Views
"At Repenic, our multiway dimmers revolutionise UK renovations by enabling seamless 2-way dimming without circuit rewires. The RD-MP and RD-250ZG use advanced trailing/leading edge tech with BOOST mode for flicker-free LEDs down to 5W. Fitting 25mm boxes with V0 fire-rated materials and 5-year warranty, they're engineered for real homes—solid brass/steel finishes blend premium aesthetics with reliable performance. Qualified electricians appreciate the no-neutral design and grid compatibility."
Which Repenic Dimmers Fit 2 Way Circuits Without Neutral?
Check: dimmer on a 2 way switch
Repenic RD-250, RD-400, RD-MP, and RD-250ZG fit 2-way circuits without neutral. Use dummies for companions; all handle 230VAC 50Hz, 25mm boxes, LED/halogen 5-250/400W.
Rd-250/RD-400: Core 2-way dimmers, programmable features. RD-MP: Multi-dimmer king. RD-250ZG: Zigbee smart, OTA upgrades. All in 1-4 gang brass/steel/white, solid metal faceplates (earth required). Dummy dimmers complete multi-gang panels.
| Model | Load (LED R,C) | 2-Way/Multiway | Key Features |
|---|---|---|---|
| RD-250 | 5-250W | 2-Way (1 dimmer) | Trailing/leading, BOOST |
| RD-400 | 5-400W | 2-Way (1 dimmer) | Multi-gang de-rate |
| RD-MP | 5-250W | Multiway (up to 5) | 50m wire limit |
| RD-250ZG | 5-250W | Multiway (1+2) | Zigbee, no neutral |
How Does Multi-Gang De-Rating Affect 2 Way Dimmer Loads?
Multi-gang de-rating reduces max load per dimmer to manage heat: e.g., RD-250 drops from 250W (1-gang) to 75W (5-gang) for R,C LEDs. Calculate total circuit load accordingly.
In shared back boxes, heat builds faster, so Repenic specs de-rating: RD-250 (R,C): 1G=250W, 2G=212W, 3G=175W, 4G=125W, 5G=75W. RD-400 (R,C): 1G=400W to 5G=120W. Ensures safety for LED upgrades. Always ≥15W total for multiway.
Conclusion
Adding a dimmer to a 2-way switch is straightforward with Repenic's UK-tailored solutions like RD-250, RD-400, and multiway options. They deliver flicker-free dimming for LEDs, fit standard setups without neutral, and match premium interiors. Consult a qualified electrician for safe installation and enjoy enhanced control in your renovation.
Discover Repenic's 2-way compatible dimmers in brass, steel, and white at repenic.com and upgrade your lighting with confidence.
FAQs
Can I use Repenic dimmers with MK grid plates?
Yes, fully compatible with MK, BG, DETA, Hager, Hamilton, Crabtree, Schneider, and Wandsworth 9-grid kits.
Do Repenic 2-way dimmers need a neutral wire?
No, designed for standard UK 25mm back boxes without neutral.
What if my LEDs flicker on low settings?
Use programmable min brightness (1-50%) and BOOST mode to boost low-level output.
Are metal Repenic faceplates safe?
Yes, V0 fire-rated with grounding required; 6-layer protection exceeds UKCA standards.
How many Repenic multiway dimmers per circuit?
Up to 5 RD-MP or 1 RD-250ZG + 2 multiway, total load ≥15W.
