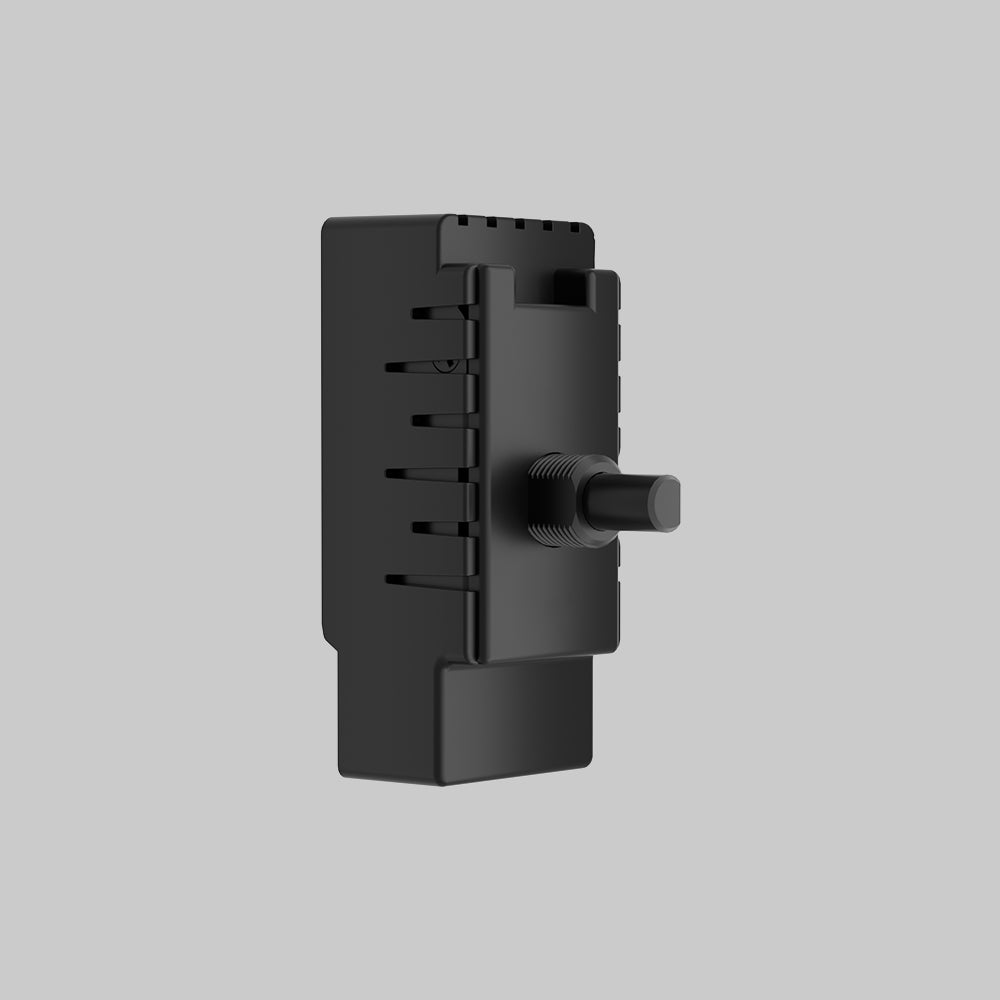

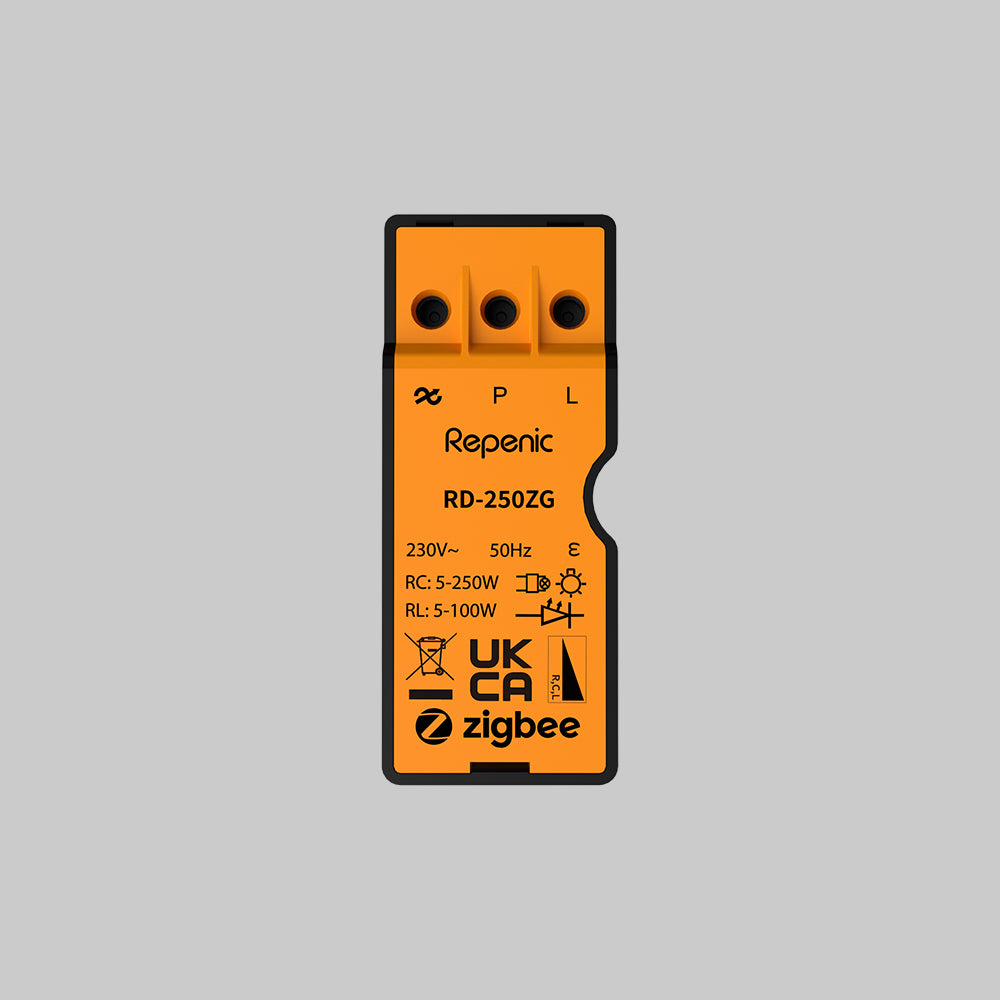

Smart dimmer module

Smart dimmer module

£41.00
Description

An excellent dimming experience is merely the most basic performance of this smart light switch. Its brilliance lies in its seamless integration with smart home platforms, particularly when paired with platforms such as SmartThings, Homey, and Habitat, where you can experience functions exclusively customised for you.

Shipping

We aim to dispatch all orders within 24 hours for orders placed between Monday and Friday. All orders placed over the weekend (Saturday and Sunday) will be handed over to the courier on Monday. Deliveries typically take1-2 working days within the UK using a next-day delivery service.

Return

We have a 14-day return policy, which means you have 14 days after receiving your item to request a return.

Warranty

5 years

Pairs well with

WiFi wireless thermostat
Smart dimmer - Black 1/2/3/4 Gang
Power
220 ~ 240V ac
Protocol
Zigbee 3.0
Load type
Halogen, Incandescent, Dimmable LED, Dimmable CFL Wattage: 5-250W/400W
Grid compatibility
MK, BG, DETA, Hager, Hamilton, Crabtree, Schneider, Schneider-lisse, Wandsworth
Wiring
No neutral required
Wall box depth
≥25mm
Dimming method
Trailing edge & leading edge
2-way or multiway
Yes (need to work with our multiway dimmer)

It should be at least 25mm.

In one circuit, there can only be one smart dimmer, and it can not be wired to a 2-way switch or intermediate switches. If you want to control it with a 2-way or 3-way method, please use our multi-way dimmers.

There is no limit on the number of lights controlled by the dimmer. As long as the total wattage of all lights controlled by this dimmer adds up to less than 250W or 400W. Due to certain errors in the nominal wattage of lights, we recommend that the total wattage of the lights be preferably below 230W or 370W.

Smooth dimming.

Driven by a high-speed dimming chipset and precision-tuned MOSFET, Repenic maintains perfect light stability through continuous real-time adjustment.

▷0~100% dimming range ▷No flickering ▷No buzzing

Compatibility, considered.

Installation
1.Back Box depth ≥25 mm.
2.Narrower profile ensures screws remain accessible when installing 2-gang units.

Lighting
√ Incandescent & Halogen
√ Dimmable LED/CFL/filament
√ Dimmable ceiling light/spotlight/downlight
√ Trailing edge & leading edge

Safety isn’t about protecting the product — it’s about protecting your family.

Built with six layers of intelligent protection, every Repenic dimmer keeps your home safe from electrical risks — so every light feels calm, secure, and reassuring.

Min. brightness

Programmable minimum brightness to prevent flickering.

Max. brightness

Automatic maximum brightness adjustment to prevent flickering.

Boost mode

Boost the lights that don't illuminate when turned on at a lower level.

Soft start

Gently start your lights to prevent them from being impacted.

Works with smart home


Compatible with all smart control platforms supporting Zigbee 3.0. Unlock more personalised features when used with open platforms such as Home Assistant and Homey. Click the button below to learn more.
