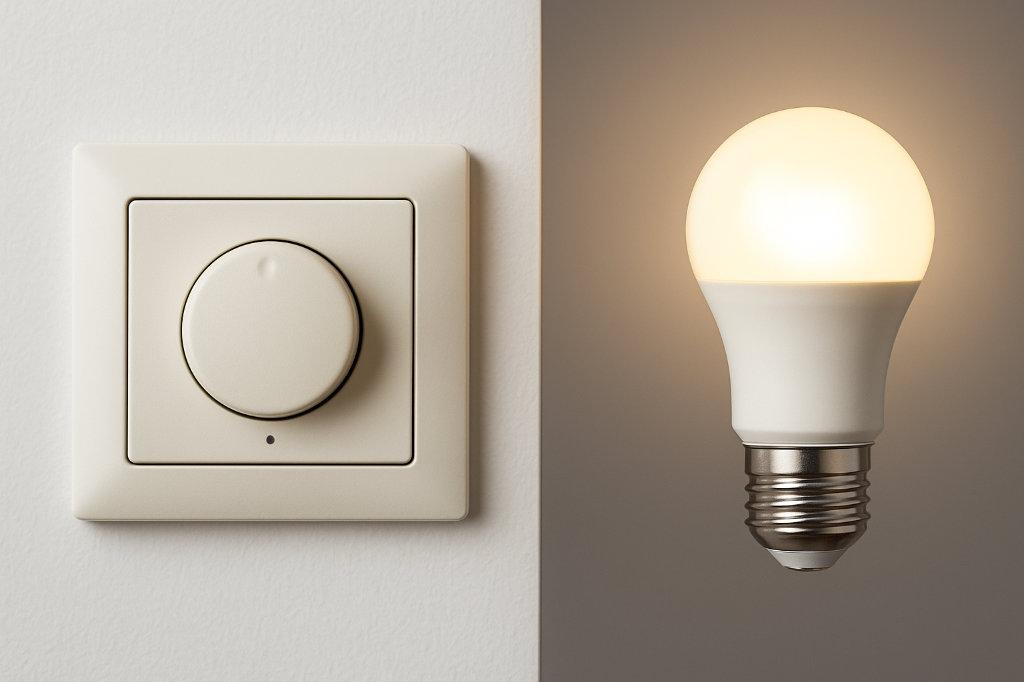

How Many Watts Can a Dimmer Handle?

How Many Watts Can a Dimmer Handle?

The maximum wattage a dimmer can handle depends on the specific dimmer, the type of lamps being used and the installation conditions. There is no single wattage limit that applies to every dimmer.

A dimmer may have different load ratings for LED, halogen and incandescent lamps. The safest approach is to check the manufacturer's specifications for the exact model and make sure the total connected load stays within its rated range.

For LED lighting, wattage is only part of the picture. The lamps must also be dimmable and compatible with the dimmer. A dimmer with a higher wattage rating will not necessarily work correctly with every LED lamp.

Table of Contents

What Wattage Can a Dimmer Handle?

Dimmer ratings vary from one model to another. Some are designed to handle higher loads from incandescent or halogen lamps, while LED-compatible dimmers may have a separate rating for LED loads.

This is because different lamp types have different electrical characteristics. Rather than relying on a general wattage figure, check the rating given by the manufacturer for the type of lamp you plan to use.

If several dimmers are installed together in a multi-gang plate, the permitted load may also change. Some products have specific derating requirements for multi-gang installations, so follow the manufacturer's instructions rather than applying a fixed percentage or wattage reduction.

How Do You Calculate the Load on a Dimmer?

Calculating the load is straightforward: add together the actual wattage of all the lamps controlled by the dimmer.

For example, if one dimmer controls six 8W dimmable LED lamps:

6 × 8W = 48W total load

You can then compare the 48W total with the dimmer's rated LED load.Use the actual power consumption of the lamps rather than an incandescent-equivalent figure that may appear on LED packaging.

It is also important to check the dimmer's minimum load. A total load that is below the specified minimum may cause flickering, poor dimming performance or other compatibility issues, even when it is well below the maximum rating.

Why Do LED Dimmers Have Different Wattage Ratings?

LED lamps use electronic drivers, so their electrical characteristics are different from the resistive loads found in traditional incandescent lamps. This is why a dimmer that works well with incandescent lamps may not perform equally well with every LED.Poor compatibility can result in flickering, buzzing, a limited dimming range or difficulty switching the lamp fully off.

For LED lighting, choosing a dimmer that is specifically designed or rated for the lamps being used is therefore more important than simply choosing one with a higher maximum wattage.

Which Lamps Can Be Used With a Dimmer?

Not all lamps are suitable for dimming.In general, the lamp should be clearly marked as dimmable and should be compatible with the dimmer being used. Dimmable LED, halogen and incandescent lamps can be used with a suitable dimmer, while non-dimmable LED lamps should not be connected to a dimming circuit.

Some LED lamps may also perform differently depending on the dimming method. Leading-edge and trailing-edge dimming are designed for different load characteristics, so compatibility should be checked before installation.

If you want to combine conventional dimming with smart control, Repenic's Zigbee Smart Dimmer is one option. It supports both leading-edge and trailing-edge dimming and is compatible with dimmable LED, halogen and incandescent lamps. It provides 0–100% dimming, uses Zigbee 3.0 and works with platforms including Home Assistant, Homey, SmartThings, Hubitat and Philips Hue. It also supports 2-way and multi-way control, requires no neutral wire and fits a standard UK 25mm back box.

For homeowners who want to retain familiar physical wall control while adding smart-home features, this type of dimmer can provide more flexibility when choosing lamps and controlling lighting. However, the lamps should still be confirmed as dimmable, and the appropriate dimming method should be selected for the load.

What Happens If a Dimmer Is Overloaded?

Warning signs can include unusual heat, buzzing, flickering or the dimmer cutting out unexpectedly. If a dimmer becomes unusually hot or starts behaving abnormally, the circuit should be switched off and the installation checked.

Multi-gang installations also need attention because some dimmers have lower permitted loads when installed next to other devices. Always use the derating information provided for the specific model.

What Should UK Homeowners Check Before Installing a Dimmer?

For a UK lighting installation, check the following before choosing or replacing a dimmer:

  • The dimmer is rated for the supply voltage used.
  • The lamps are marked as dimmable.
  • The dimmer supports the type of lamp being used.
  • The total load is within the specified minimum and maximum ratings.
  • The dimming method is suitable for the lamps.
  • The wall box and existing wiring meet the product's installation requirements.
  • Any multi-gang derating requirements are followed.

Older UK properties can have different wiring arrangements, so do not assume that the wiring behind an existing switch will always match a newer installation. If you are unsure about the circuit or the installation requirements, consult a qualified electrician.

Conclusion

A dimmer's wattage capacity depends on the specific product, the type of lamps being controlled and the installation conditions. There is no universal maximum wattage that applies to every dimmer.

Before installation, check the manufacturer's load rating, calculate the actual combined wattage of the lamps and make sure the load falls within the specified minimum and maximum limits. For LED lighting, also confirm that the lamps are dimmable and compatible with the dimmer.

For UK installations, checking the product specifications, wiring requirements and lamp compatibility in advance can help prevent flickering, overheating and other problems.

FAQs

How many watts can a standard dimmer handle?

It depends on the specific dimmer and the type of lamp being used. Always check the manufacturer's rating for the relevant lamp type.

Can I use any LED bulb with a dimmer?

No. The LED bulb should be specifically marked as dimmable and compatible with the dimmer. Non-dimmable LEDs should not be connected to a dimming circuit.

What happens if I exceed the dimmer's wattage rating?

The dimmer may overheat, operate unreliably or become damaged. The total load should always remain within the manufacturer's specified limits.

Do LED lamps have different wattage limits?

They can. Some dimmers have separate load ratings for LED and traditional lamps, so check the manufacturer's specifications rather than assuming the same rating applies to every lamp type.

Can a dimmer handle a very low LED load?

It depends on the model. If the total load is below the dimmer's minimum rating, flickering, poor dimming or other compatibility problems may occur.
